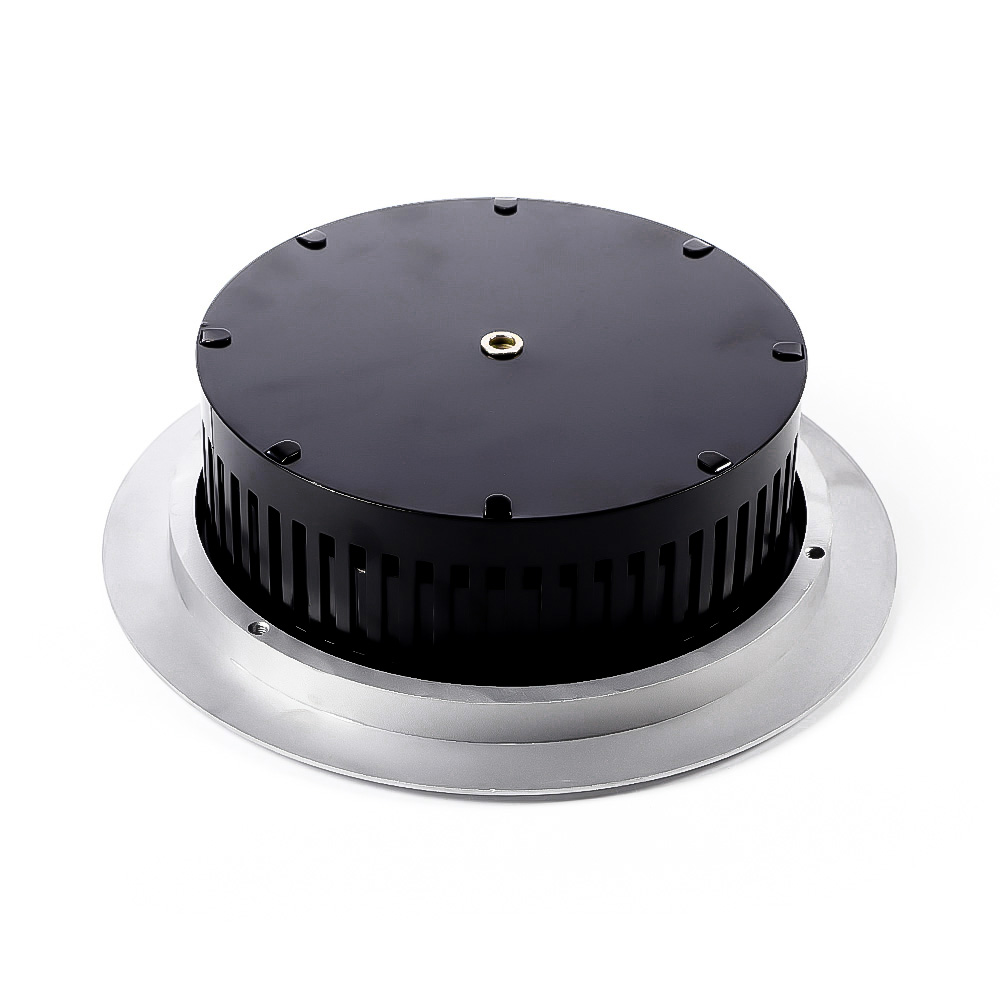

Concealed and fully removable swirl blade set and dirt collection tray.
1/4 inch think aluminium core is strong enough to support light foot traffic.
Quick and simple to fit.
Standard aluminium finish.
Available powder coated to any RAL or BS Colours.
Size for 150mm and 200mm
Specification
|

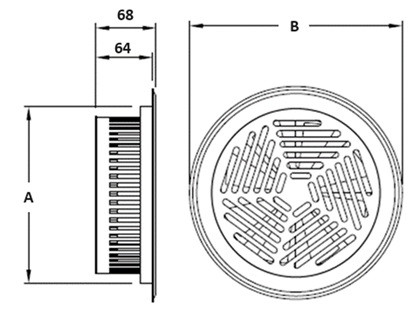

Size (mm) |
Neck (A) |
Face (B) |
|
150 |
150 |
190 |
|
200 |
200 |
240 |

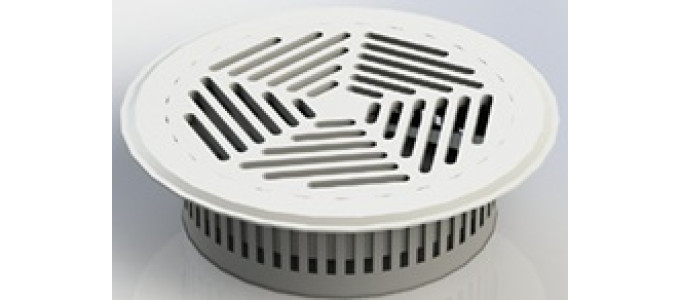

The floor round swirl diffusers Designed for supply air applications, the floor swirl diffuser is suitable for installing into floors with a pressurised void or can be ducted using an additional plenum box.
The diffuser includes an integral baffle, which can be adjusted to provide horizontal or vertical discharge patterns, along with a combined damper and dust basket.
