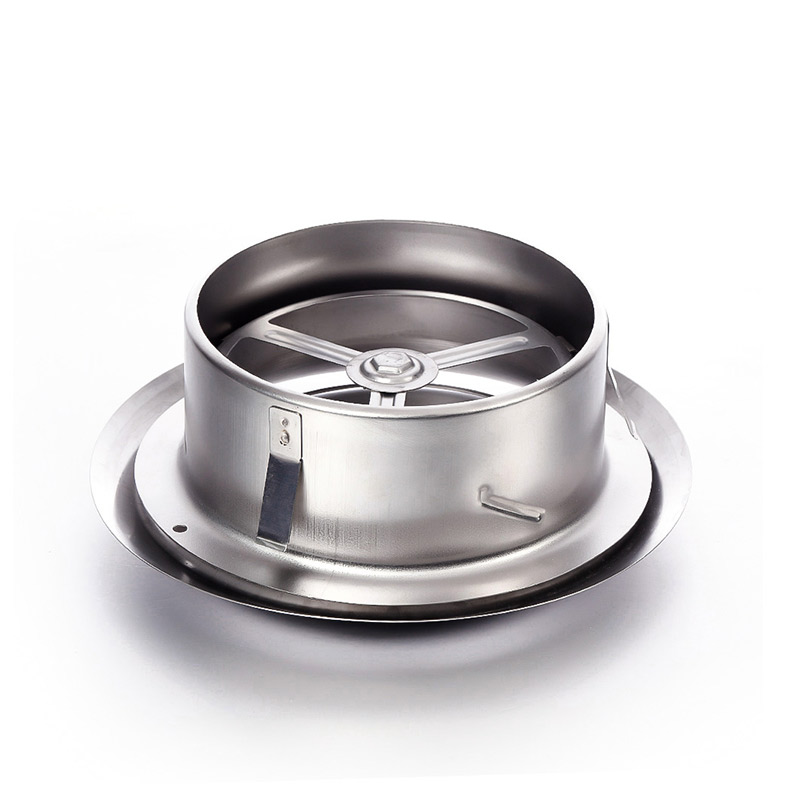

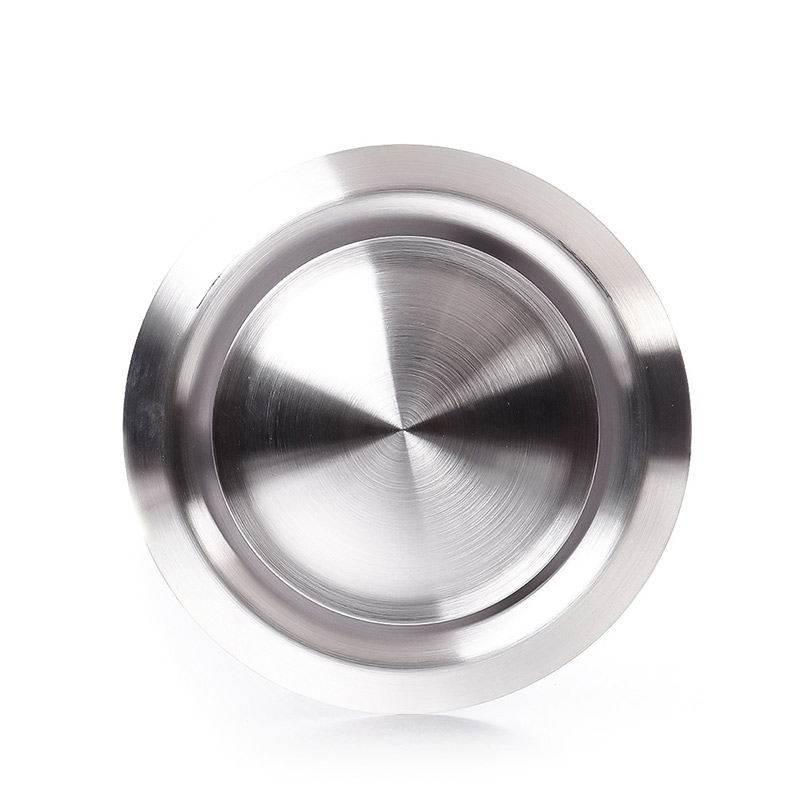

Stainless Steel Indoor Air Valve
Model : HC-VS

Crafted entirely fromSUS304/2B stainless steel through a series of precision processes including stamping, stretching, sanding, and welding. It can be ordered directly according to the wall opening size.

This unit offers excellent anti-rust properties.

It is suitable for various settings, including offices and residences, and allows for easy installation on walls or ceilings.

With its distinguished, attractive appearance, the valve is designed for both return and supply air applications.

Airflow can be conveniently adjusted by rotating the control disc.

Each unit is supplied with a mounting ring for secure installation.

Available in the sizes listed below.

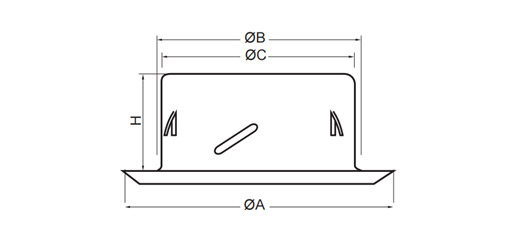

Specification

Size(mm)

A (MM)

B (MM)

C (MM)

H(MM)

HC-VS 100

148

100

95

51

HC-VS 125

168

125

120

51

HC-VS 150

187

150

145

61

The Stainless Steel Supply Air Disc Valve (VS) is designed for both air exhaust and supply applications. Constructed from durable brushed stainless steel, the valve features an adjustable disc, a foam rubber sealing ring, and a mounting frame for secure installation.

Featuring a durable sanded finish, it is built to last, resistant to deformation, and maintains the aesthetic integrity of any interior space. Ideal for use in applications such as fresh air systems and other direct indoor air discharge environments.
