Manufactured from sheet with a white powder-coated finish RAL9010,RAL9016.
Durable & Practical Construction
Crafted from premium selected materials, with a reinforced fulcrum structure for enhanced rigidity and extended service life.
Precision Splicing & Welding
Features seamless and robust round-profile joints, achieved through high-quality welding for a smooth, tidy, and burr-free finish.
Adjustable Airflow Direction
Allows air flow to be flexibly directed up to 45° for tailored ventilation control.
Available in the sizes listed below.

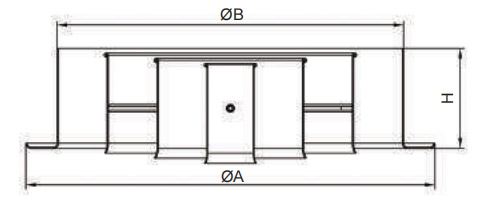

Specification
|
Sepecification |
150 |
200 |
250 |
300 |
350 |
400 |
|
φ B |
148 |
198 |
248 |
298 |
348 |
398 |
|
φ A |
210 |
260 |
310 |
360 |
410 |
460 |
|
H |
51 |
51 |
51 |
51 |
51 |
51 |

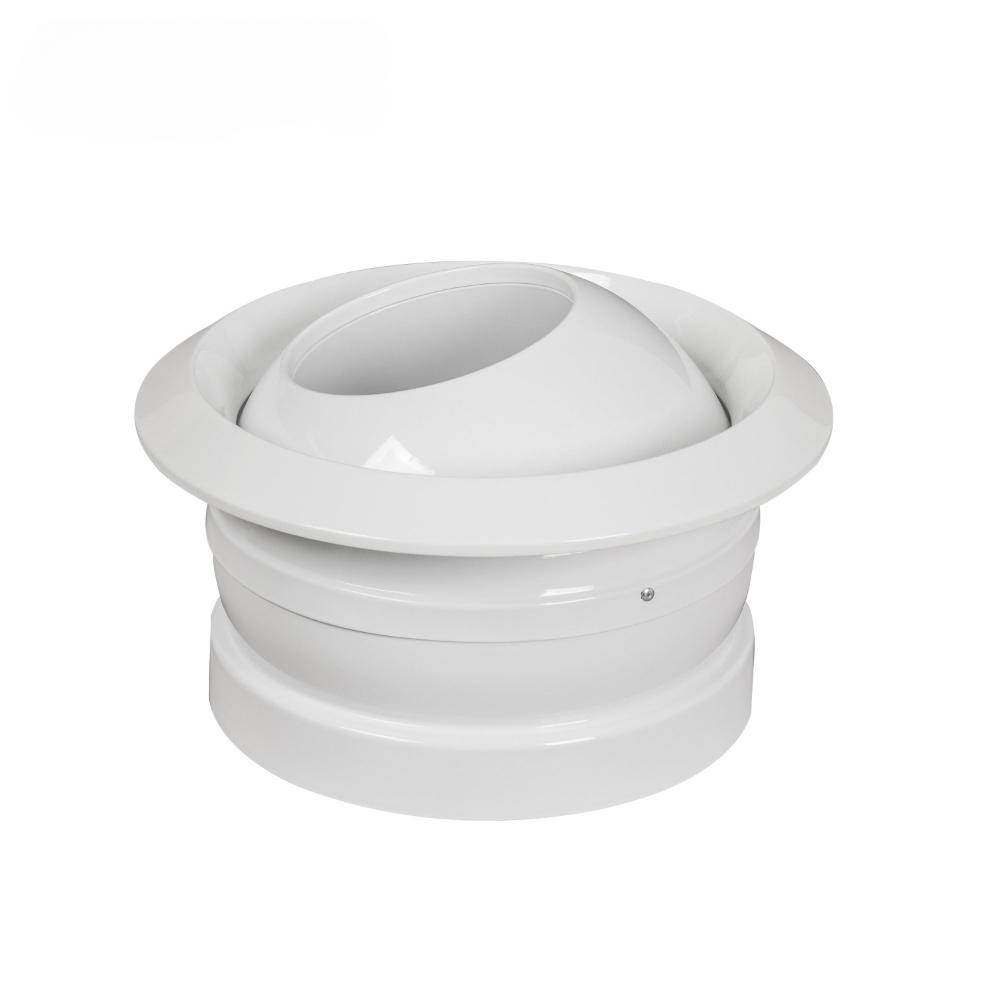

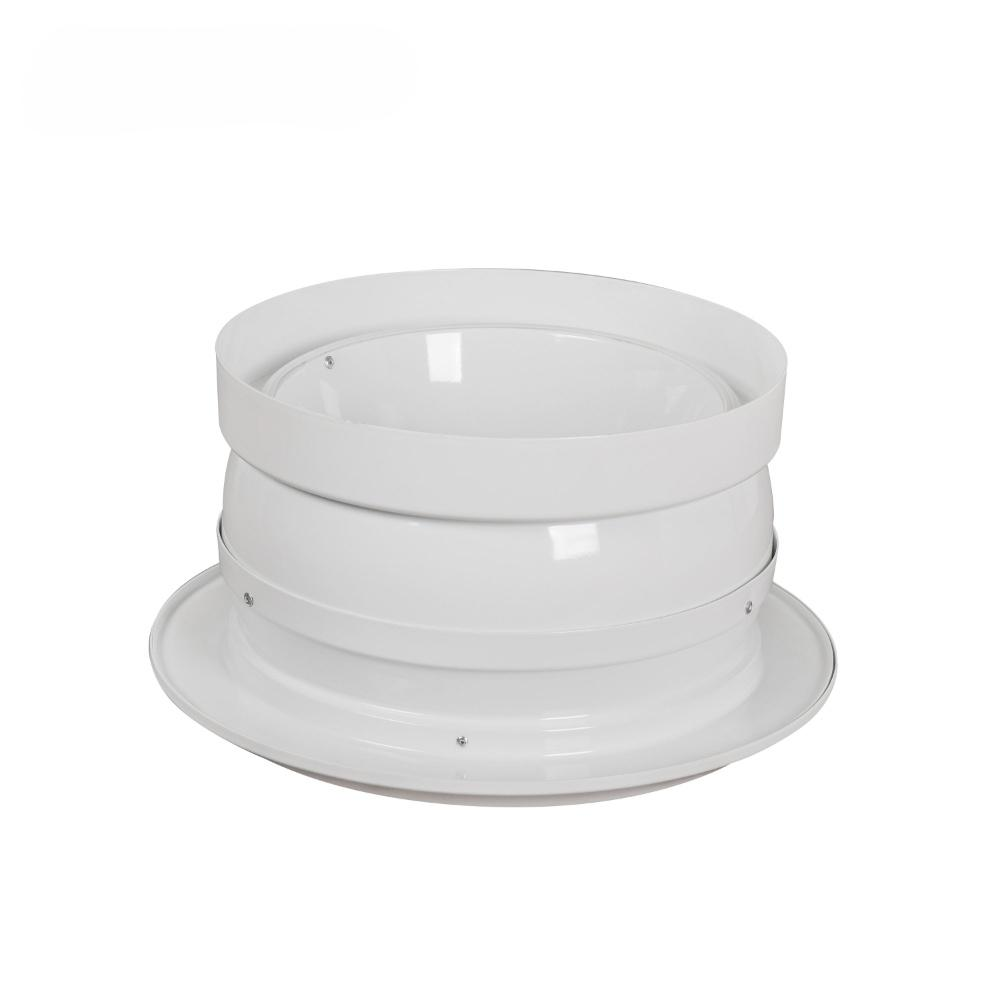

This diffuser features an aerodynamic design with concentric rings and a pivoting eyeball adjustment mechanism, allowing directional control up to 30° from its axis.
Aerodynamic Design
Enhances air circulation efficiency and improves the overall performance of HVAC and ventilation systems, ensuring uniform air distribution.
It enhances air circulation efficiency and improves the overall performance of HVAC or ventilation systems by ensuring even air distribution.
Suitable for both wall and duct mounting, it is especially recommended for installations in high or hard-to-reach locations.
