Used for both exhaust and supply air,easy installation on wall or in the ceiling.
Manufactured from sheet with a white powder-coated finish RAL9010,RAL9016,RAL9003.

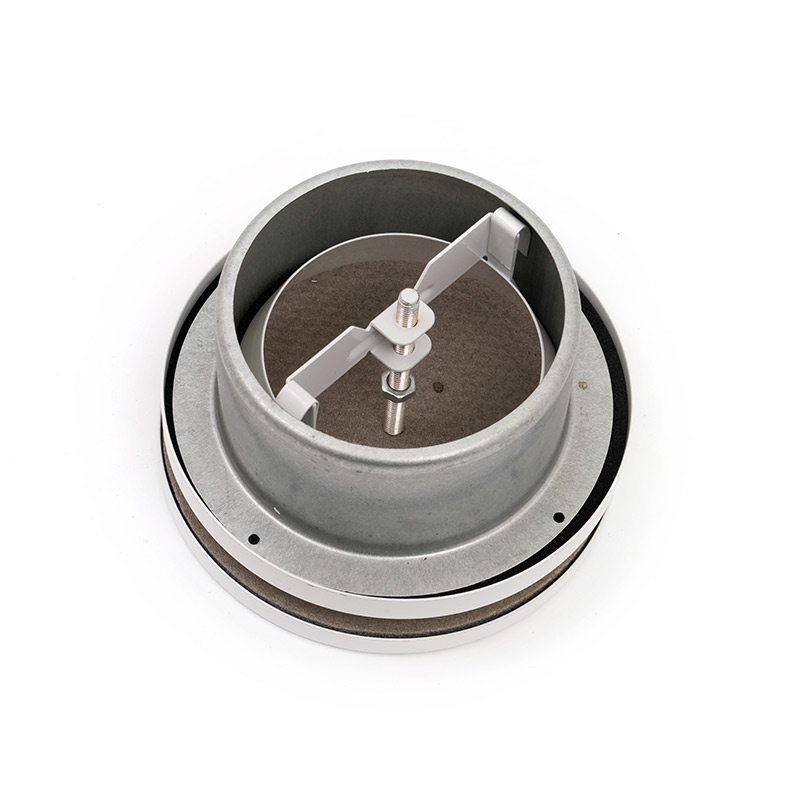

The valve body is equipped with a cellular plastic gasket.
All the size can be installed into the mounting frame or directly into the duct using its friction springs.
The air flow can easliy be adjusted by rotating the diffuser unit.

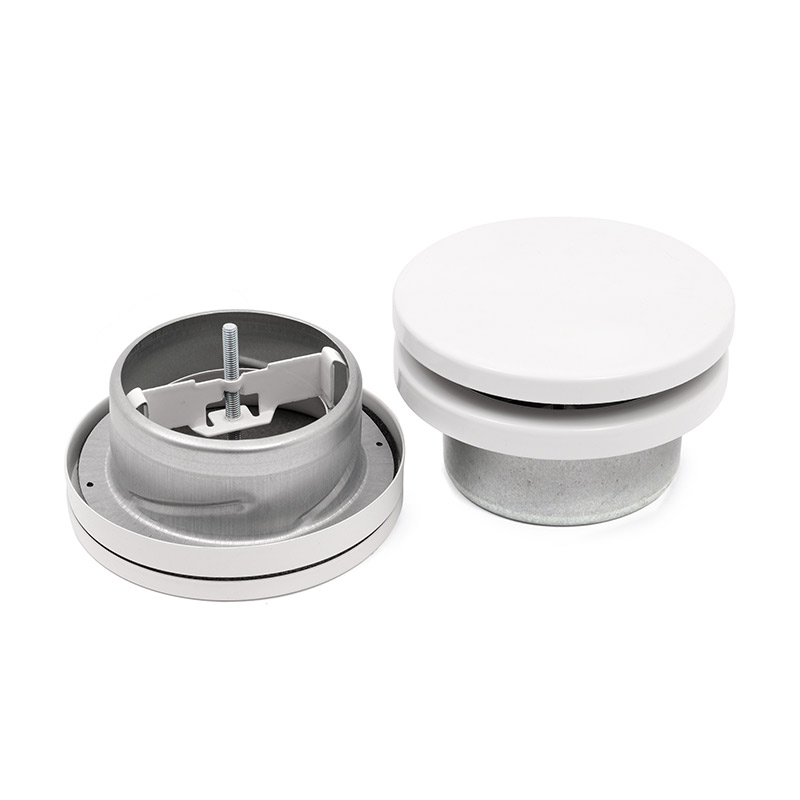

Accessories:mounting ring.
Available in the sizes listed below.

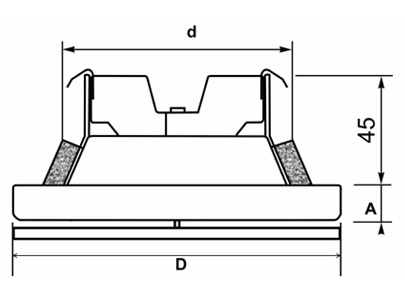

Specification
|
Size(mm) |
A (MM) |
D (MM) |
d (MM) |
|
80 |
16 |
106 |
80 |
|
100 |
16 |
135 |
100 |
|
125 |
16 |
160 |
125 |
|
150 |
16 |
191 |
150 |
|
160 |
16 |
191 |
160 |
|
200 |
19 |
238 |
200 |

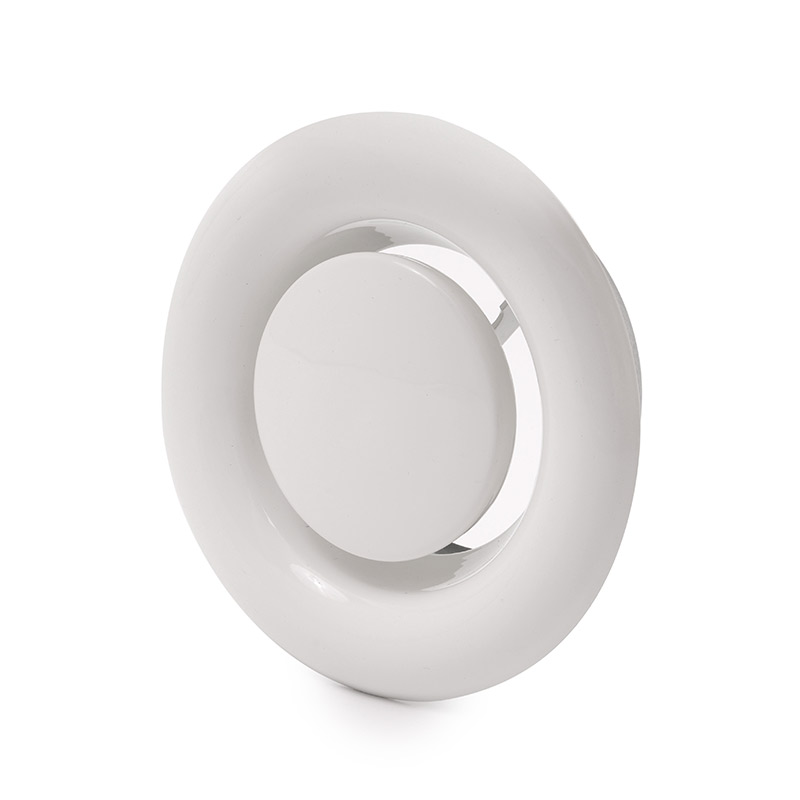

Metal exhaust air valves are a popular alternative to ceiling diffusers, primarily used for ventilation. Airflow through the valve can be adjusted by rotating the disc clockwise or counterclockwise, which alters the free area between the disc and the frame.
Their simple yet aesthetic design makes disc valves a preferred choice among architects and building owners for toilets, bathrooms, and damp-area ventilation. Available in diameters ranging from 80mm to 200mm, they are also easy to install.
