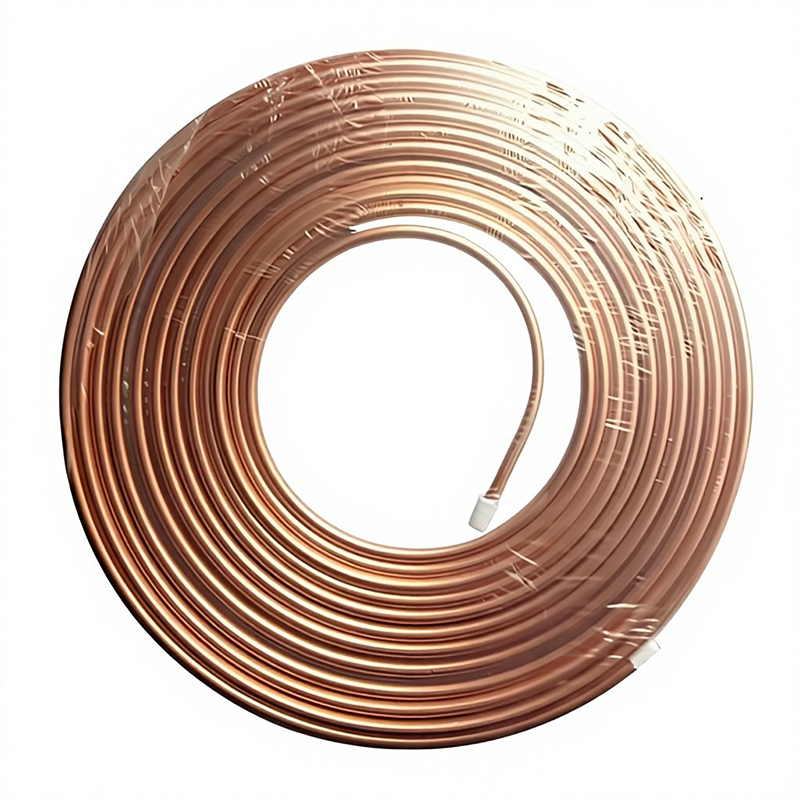

Copper tube coils, commonly used in refrigeration, air conditioning, gas systems, and automotive brake lines.
Material: Pure copper or copper alloy.
Application: Liquid and gas transportation.
Features: Corrosion resistance, easy to bend, good thermal conductivity.

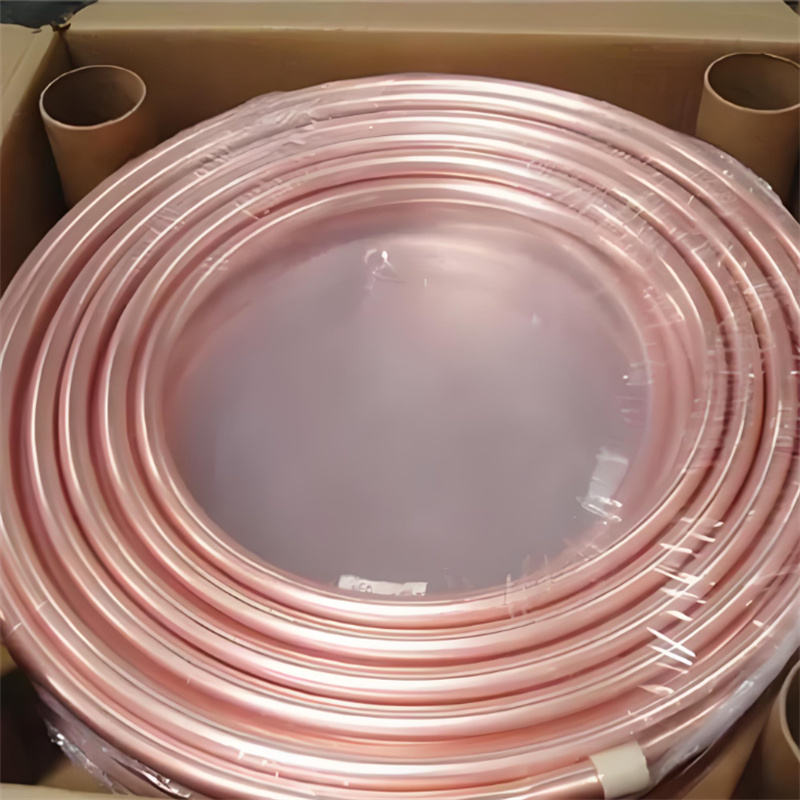

Form: Wound into coil shapes for convenient transportation and storage.
Specification
|
Item Code |
Dimensions (O.D.× thickness) |
Dimensions(O.D.× thickness) |
Length for Pancake Coil |
|
to ASTM B-280 |
to EN 12735-1 |
||
|
INCH |
MM |
M |
|
|
HC-ACR Copper Coils |
1/4 (6.35mm)×0.030 |
6×1 |
15 / 30 / 50 |
|
HC-ACR Copper Coils |
5/16 (7.94mm)×0.032 |
8×1 |
15 / 30 / 50 |
|
HC-ACR Copper Coils |
3/8 (9.52mm)×0.032 |
10×1 |
15 / 30 / 50 |
|
HC-ACR Copper Coils |
1/2 (12.7mm)×0.032 |
12×1 |
15 / 30 / 50 |
|
HC-ACR Copper Coils |
5/8 (15.88mm)×0.035 |
15×1 |
15 / 30 / 50 |
|
HC-ACR Copper Coils |
3/4 (19.05mm)×0.035 |
16×1 |
15 / 30 / 50 |
|
HC-ACR Copper Coils |
3/4 (19.05mm)×0.042 |
18×1 |
15 / 30 / 50 |
|
HC-ACR Copper Coils |
7/8 (22.22mm)×0.045 |
22×1 |
15 / 30 / 50 |
