Typically used to connect the indoor and outdoor units of split-type air conditioners.

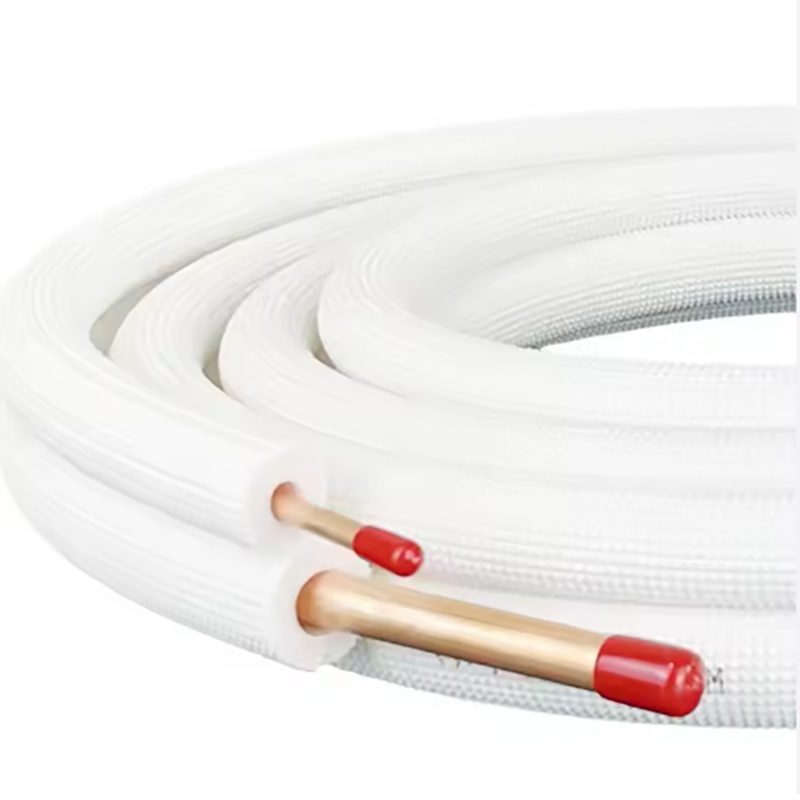

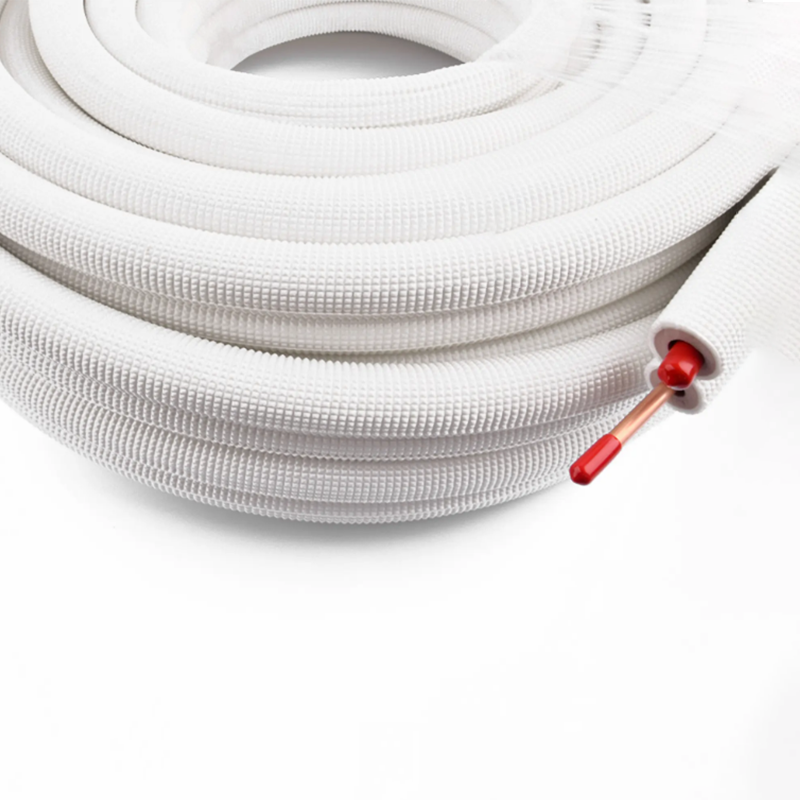

Consists of copper pipes and white insulating sleeves.
The insulating material helps prevent condensation and improves system efficiency.
Available in various lengths and diameters.
Specification
|
Item Code |
Specification |
Copper tube |
Insulation tube |
Suitable for |
Length |
|
Out diameter×thickness |
Inner diameter(mm) |
(m) |
|||
|
d2×t2 / d1×t1 (mm) |
|||||
|
HC-Insulated Copper Tube |
1/4"+3/8" |
6.35×0.8+9.52×0.8 |
φ8(±0.5)+φ12(±0.5) |
1HP |
3-30 |
|
HC-Insulated Copper Tube |
1/4"+1/2" |
6.35×0.8+12.70×0.8 |
φ8(±0.5)+φ14(±0.5) |
1.5HP |
3-30 |
|
HC-Insulated Copper Tube |
1/4"+5/8" |
6.35×0.8+15.88×1.0 |
φ8(±0.5)+φ18(±0.5) |
2HP |
3-30 |
|
HC-Insulated Copper Tube |
3/8"+5/8" |
9.52×0.8+15.88×1.0 |
φ12(±0.5)+φ18(±0.5) |
3HP |
3-30 |
|
HC-Insulated Copper Tube |
3/8"+3/4" |
9.52×0.8+19.05×1.0 |
φ12(±0.5)+φ22(±1) |
4HP |
3-30 |
|
HC-Insulated Copper Tube |
1/2"+3/4" |
12.70×0.8+19.05×1.0 |
φ14(±0.5)+φ22(±1) |
5HP |
3-30 |
