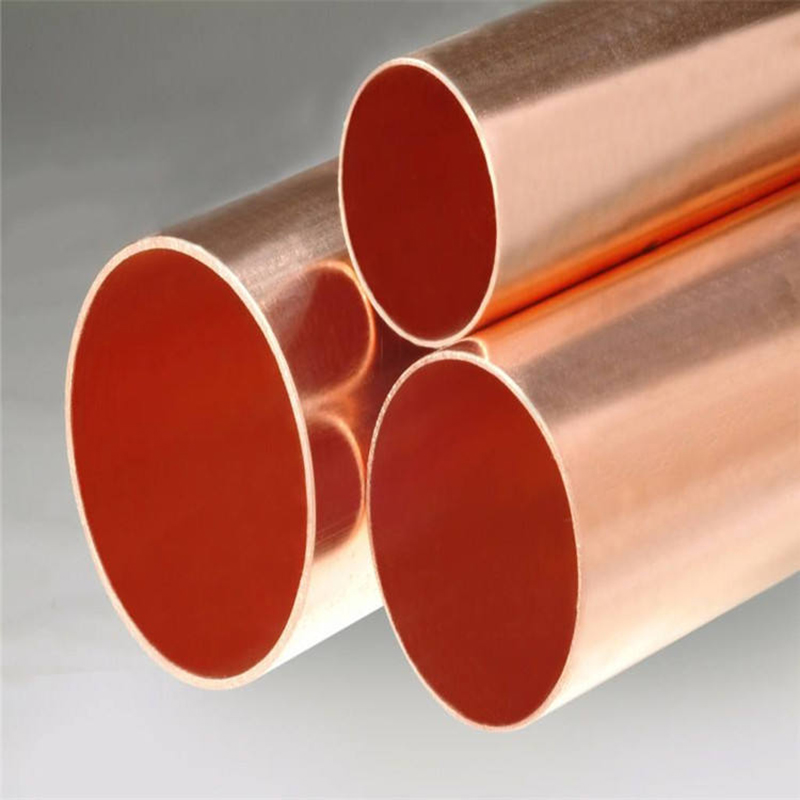

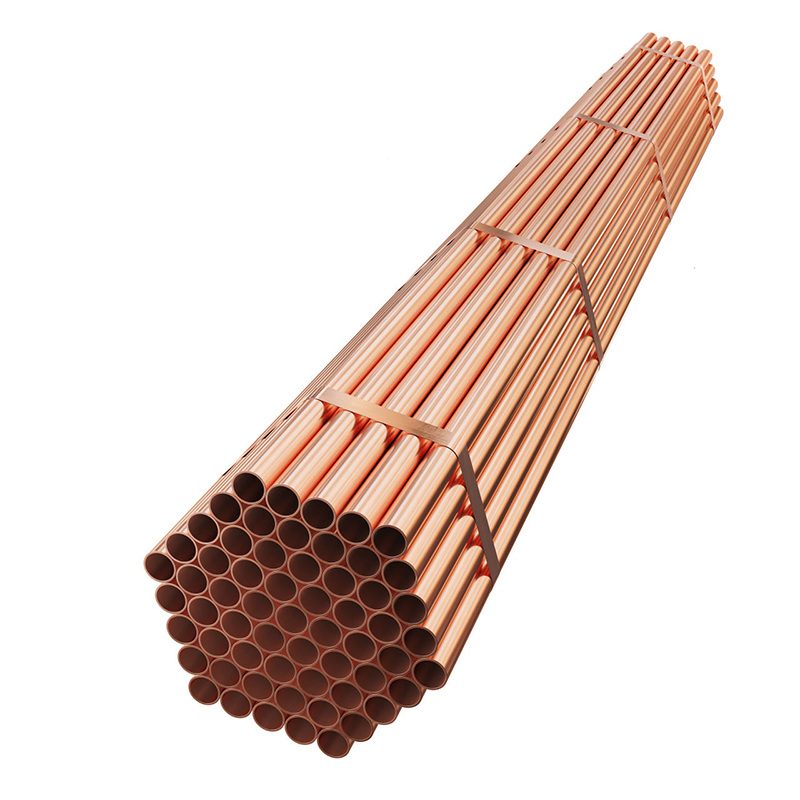

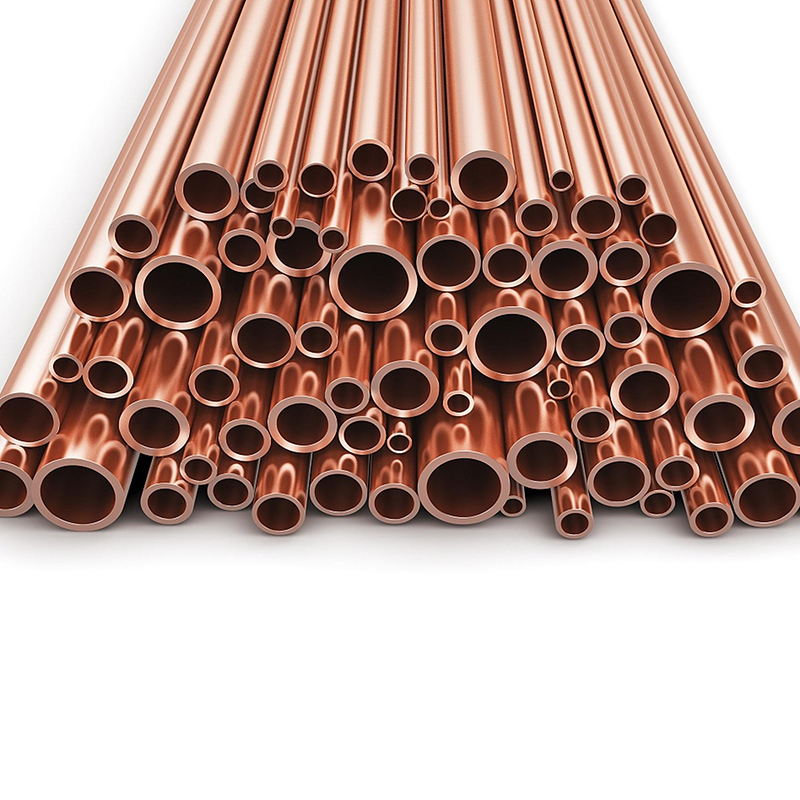

Crafted from copper material, these pipes offer light weight, high strength, excellent thermal conductivity, heat resistance, and good ductility, making them suitable for a wide range of applications.
Featuring a smooth, seamless interior, they are available in extruded or precision-drawn seamless round tubing for high-accuracy applications.
Specification
|
Item Code |
Dimensions (O.D.× thickness) |
Dimensions(O.D.× thickness) |
Length |
|
ASTM B-280 |
EN 12735-1 |
M |
|
|
INCH |
MM |
||
|
HC-ACR Copper Straight Tubes |
1-1/8 (28.6mm)×0.050 |
28×1.5 |
5 / 5.8 |
|
HC-ACR Copper Straight Tubes |
1-3/8 (34.9mm)×0.055 |
35×1.5 |
5 / 5.8 |
|
HC-ACR Copper Straight Tubes |
1-5/8 (41.3mm)×0.060 |
42×1.5 |
5 / 5.8 |
|
HC-ACR Copper Straight Tubes |
2-1/8 (54.0mm)×0.070 |
54×2 |
5 / 5.8 |
|
HC-ACR Copper Straight Tubes |
2-5/8 (66.7mm)×0.080 |
64×2 |
5 / 5.8 |
|
HC-ACR Copper Straight Tubes |
3-1/8 (79.4mm)×0.090 |
76.1×2 |
5 / 5.8 |
