Specification
|

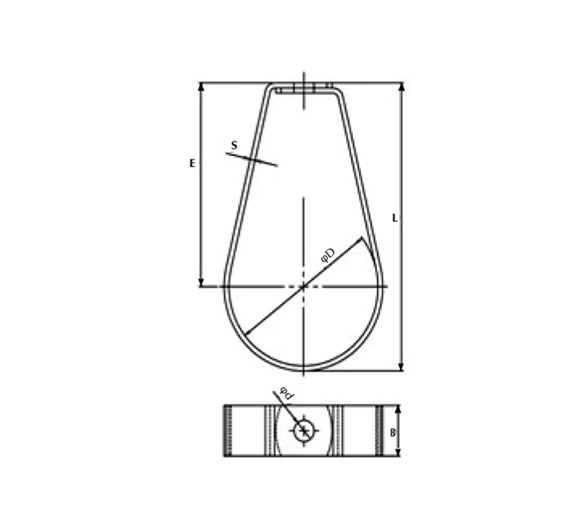

Size |
φD |
E |
L |
S*B |
M/φd |
|
3/4" |
30 |
54.5 |
71 |
1.5*25 |
M10.5 |
|
1" |
36 |
63.5 |
83 |
1.5*25 |
M10.5 |
|
1 1/4" |
46 |
70.5 |
95 |
1.5*25 |
M10.5 |
|
1 1/2" |
52 |
75.5 |
103 |
1.5*25 |
M10.5 |
|
2" |
66 |
83.5 |
118 |
1.5*25 |
M10.5 |
|
2 1/2" |
78 |
100.5 |
142 |
2.5*25 |
M10.5 |
|
3" |
92 |
117.5 |
166 |
2.5*25 |
M10.5 |
|
4" |
116 |
143.5 |
204 |
2.5*25 |
M10.5 |
|
5" |
142 |
175 |
249 |
3.0*25 |
M13 |
|
6" |
170 |
196 |
384 |
3.0*25 |
M13 |
|
8" |
222 |
262 |
376 |
3.0*40 |
M17 |
|
10" |
275 |
357.5 |
498 |
3.0*40 |
M17 |
|
... |
... |
... |
... |
... |
... |
A clamp designed for the free-hanging installation of horizontal pipelines, suitable for sprinkler systems and fire extinguishing systems.
Features height adjustment via threaded rods and is electro-galvanized for corrosion resistance (plating thickness: 8–10 μm).
