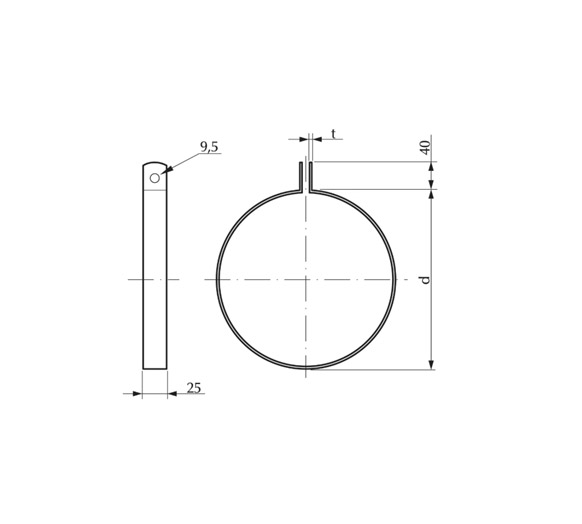

Specification
|
Item Code |
Size |
Thickness(MM) |
Connection |
|
(mm) |
nut |
||
|
HC-SCP-D |
80 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |
|
HC-SCP-D |
100 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |
|
HC-SCP-D |
125 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |
|
HC-SCP-D |
140 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |
|
HC-SCP-D |
150 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |
|
HC-SCP-D |
160 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |
|
HC-SCP-D |
180 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |
|
HC-SCP-D |
200 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |
|
HC-SCP-D |
225 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |
|
HC-SCP-D |
250 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |
|
HC-SCP-D |
280 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |
|
HC-SCP-D |
300 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |
|
HC-SCP-D |
315 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |
|
HC-SCP-D |
355 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |
|
HC-SCP-D |
400 |
1.8MM.2.0MM and 2.5MM |
M8+M10 |

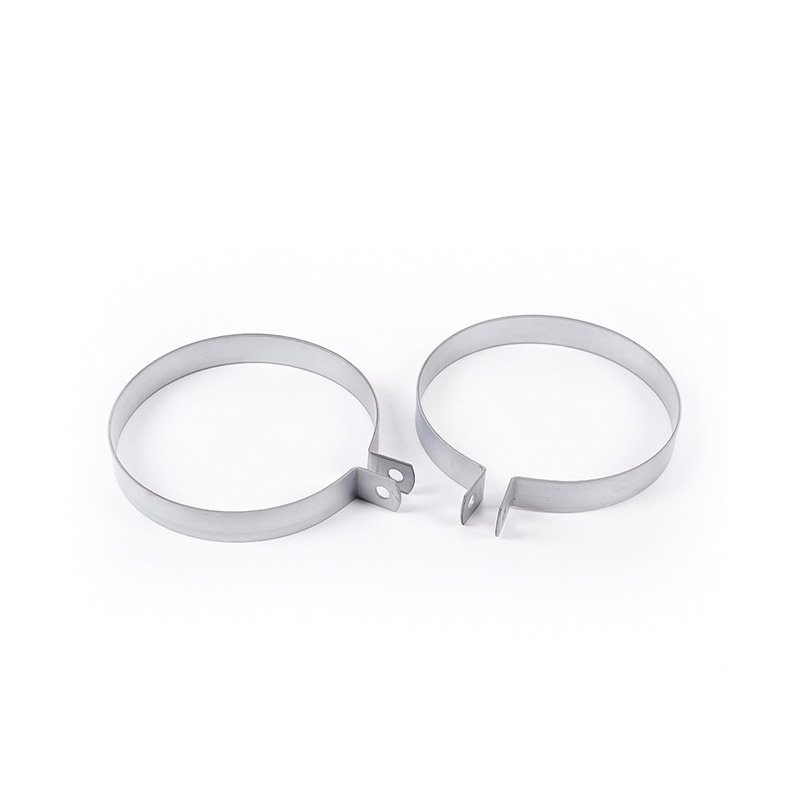

Designed for suspending rigid circular ducts.
Compatible with ducts from 80–400mm in diameter, featuring M6 screws on both sides.
Single-point suspension with an M8/M10 nut on top.
For ducts 450–800mm in diameter, dual-point suspension with M10 mounting holes on each side.
Quick-lock and tightening system enables fast assembly.
Optional gasket version minimizes vibration transmission to building structures.
Diameters 80–400mm: M6 screws on both sides, single-point suspension with M8/M10 nut on top
Diameters 450–800mm: dual-point suspension with M10 mounting holes on each side
Features quick-lock and tightening systems for fast assembly
Optional gasket version prevents vibration transfer to building structures
