Specification
|
Product name |
Blind Rivet |
|
Size(Diameter) |
3.2mm-6.4mm |
|
Material |
Stainless Steel, Aluminum |
|
Grade |
Class 6 |
|
Standard |
GB, DIN, ISO, ANSI/ASTM,, JIS etc |
|
Non-standards |
OEM is available, according to drawing or samples |
|
Finish |
Bright(Uncoated), Polished, Zinc Plated |
|
Package |
Inner Plastic Bag + Carton + Pallet |
This type of fastener comes with different materials, such as in aluminum, zinc coated steel, copper steel and many more. The rivet assembly is inserted into a hole drilled through the parts to be joined, and a specially designed tool is used to draw the mandrel into the rivet.
These blind rivets have non-locking mandrels, and are sometimes avoided for critical structural joints. The mandrels may fall out, due to vibration or other reasons, leaving a hollow rivet that has a significantly lower load carrying capability than solid rivets.
|

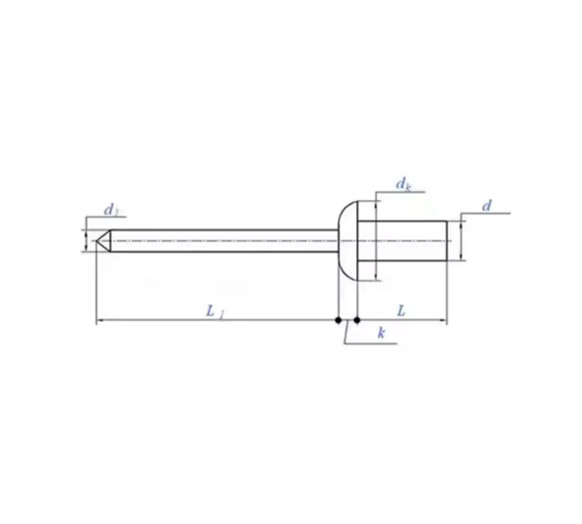

Diameter（d） |
Length(L) |
dk |
K |
d1 |
|
3.2（+0.08/-0.15)mm |
L+0.8mm |
6.7mm(MAX) |
1.3mm(MAX) |
1.7-2.1mm |
|
4.0（+0.08/-0.15)mm |
L+0.8mm |
8.4mm(MAX) |
1.7mm(MAX) |
1.7-2.1mm |
|
4.8（+0.08/-0.15)mm |
L+0.8mm |
10.1mm(MAX) |
2.0mm(MAX) |
1.7-2.1mm |
|
6.4（+0.08/-0.15)mm |
L+0.8mm |
13.4mm(MAX) |
2.7mm(MAX) |
2.5-2.6mm |
