Specification
|

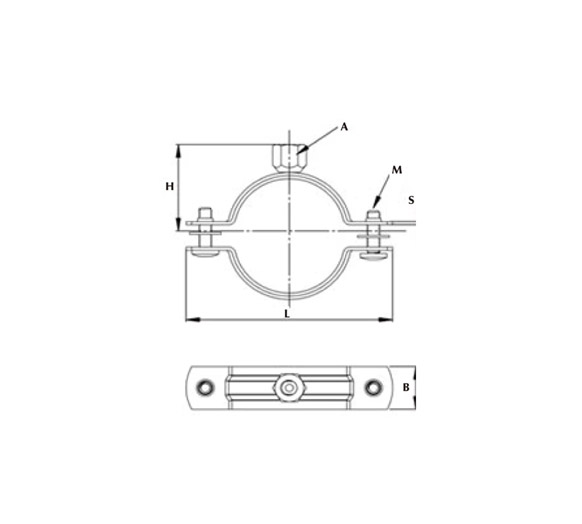

Item Code |
Size |
φD |
L |
H |
S*B |
M |
A |
|
(mm) |
|||||||
|
HC-SCP-E |
1/8" |
8-11 |
50 |
16.5 |
1,0*20 |
M6 |
M8 |
|
HC-SCP-E |
1/4" |
11-15 |
58 |
18 |
1,0*20 |
M6 |
M8 |
|
HC-SCP-E |
3/8" |
16-20 |
61 |
19.5 |
1,0*20 |
M6 |
M8 |
|
HC-SCP-E |
1/2" |
20-24 |
63 |
22 |
1,0*20 |
M6 |
M8 |
|
HC-SCP-E |
3/4" |
25-28 |
69 |
24 |
1,0*20 |
M6 |
M8 |
|
HC-SCP-E |
1" |
32-35 |
77 |
28 |
1,2*20 |
M6 |
M8 |
|
HC-SCP-E |
1 1/4" |
39-46 |
84 |
31.5 |
1,2*20 |
M6 |
M8 |
|
|
... |
... |
... |
... |
... |
... |
... |
A heavy-duty clamp designed for suspending rigid circular ductwork.
Supports duct diameters of 80–400mm, fitted with M6 screws on both sides and a single-point top suspension (M8/M10 nut).
For larger ducts (450–800mm), features dual-point suspension with M10 mounting holes on each side.
Incorporates a quick-lock and tightening system for rapid, tool‑light assembly.
Available with an optional anti‑vibration gasket to reduce noise and structural transmission.
