Specification
|
Product name |

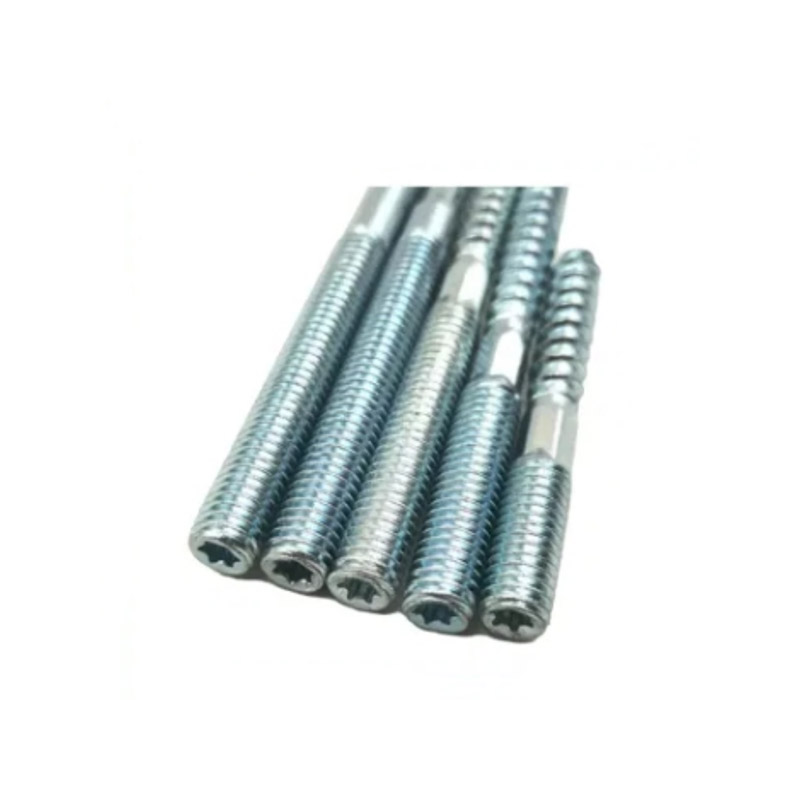

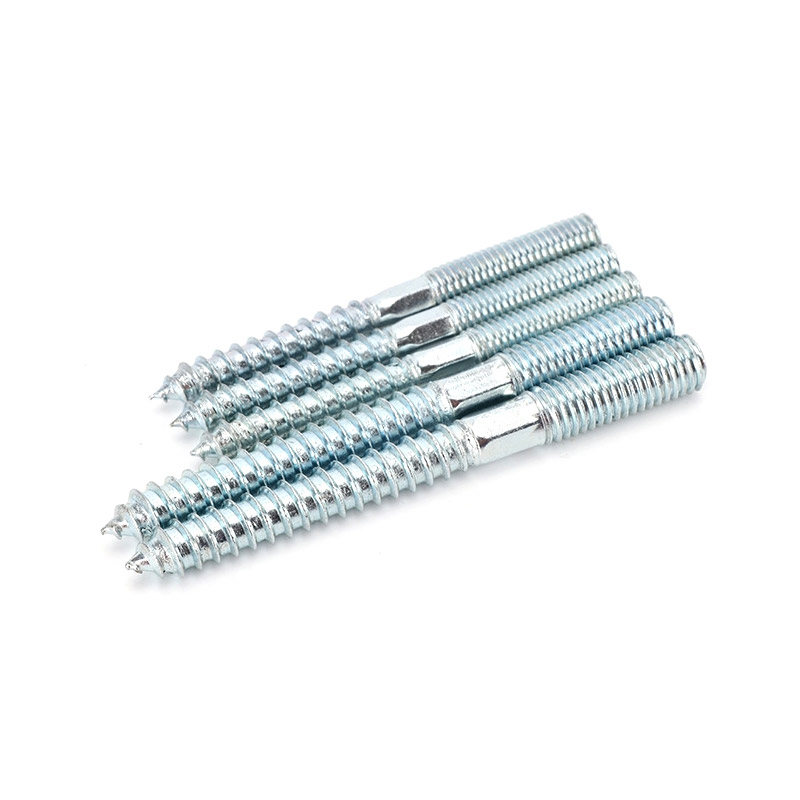

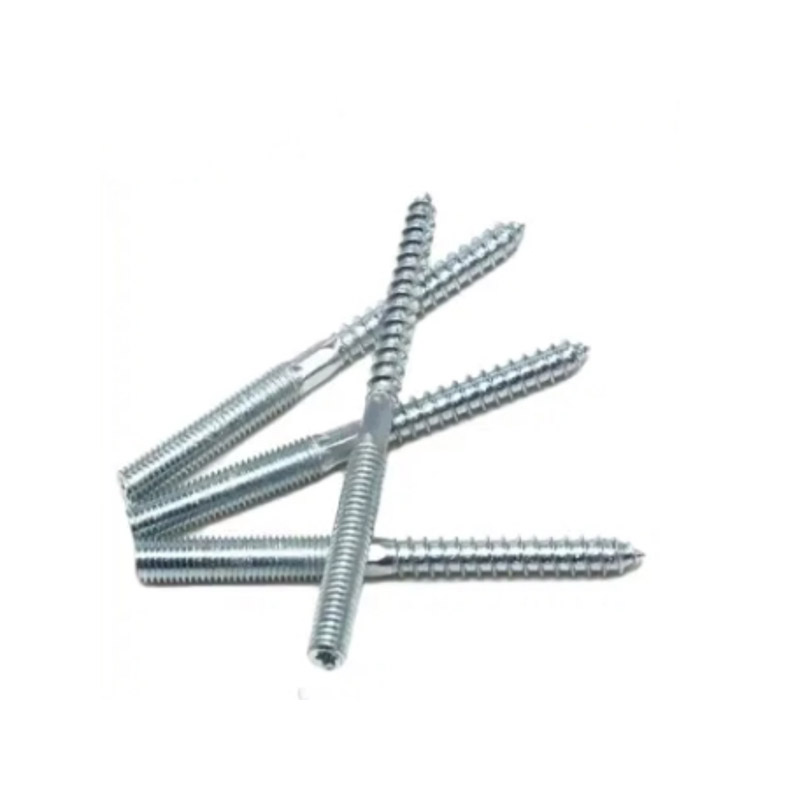

Double Thread Screw |
|
Thread size |
M3-M12 |
|
Material |
Steel, Carbon Steel |
|
Color |
Blue, Black ,Natural |
|
Head Type |
Hex Head, Double ended. or Customized |
|
Length |
5-120MM |
|
Surface Treatment |
Zinc, Plain, Natural |
|
Grade |
4.8/ 8.8/ 10.9/ 12.9 Ect |
Design Features: One end features a wood thread (for self-tapping into wood), while the other end has a machine thread (for connecting to nuts or metal components).
Materials and Surface Treatment: Typically made from carbon steel with a galvanized finish, presenting a silver luster.
Primary Uses: Commonly employed in woodworking and furniture manufacturing to connect wooden components (such as table legs or armrests) to metal brackets or other parts secured with nuts.
Installation Method: Requires pre-drilling a pilot hole in the wood, followed by screwing the wood-threaded end into the wood using a nut or specialized tool.
Multiple Sizes Available: Available in a variety of metric and imperial size specifications to accommodate different application needs.
