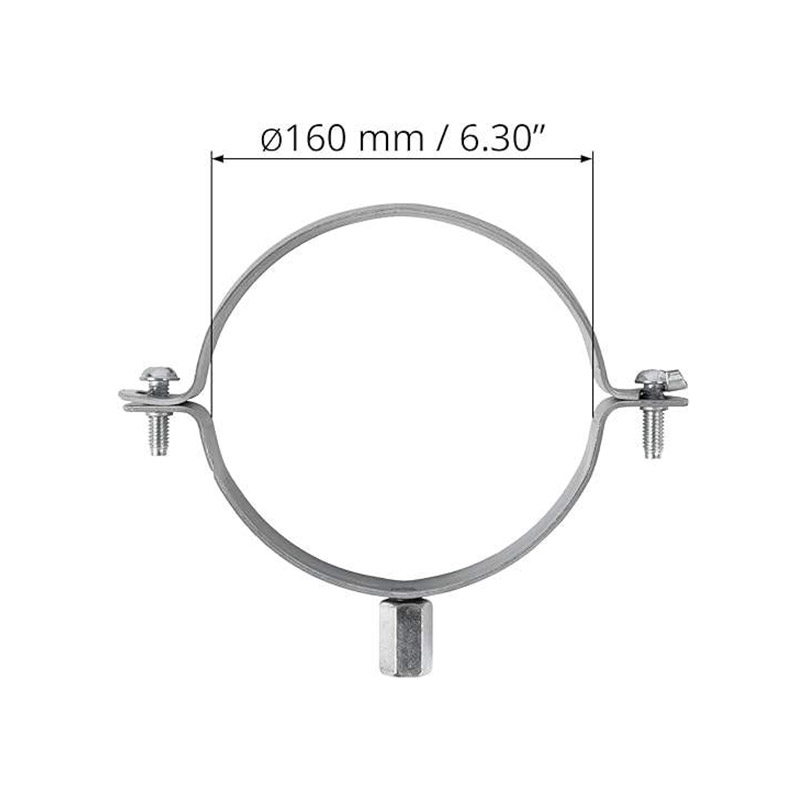

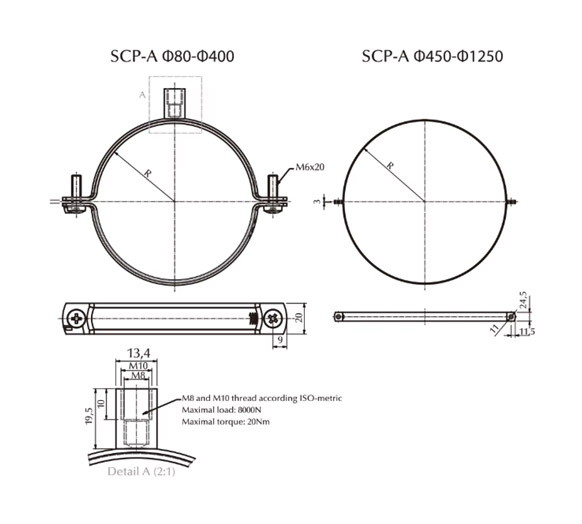

Diameters 80–400mm: M6 screws on both sides, single-point suspension with M8/M10 nut on top.
Diameters 450–800mm: dual-point suspension with M10 mounting holes on each side
Features quick-lock and tightening systems for fast assembly
Optional gasket version prevents vibration transfer to building structures
Specification
|
Item Code |
SIZE |
Thickness |
Connection nut |
|
HC-SCP-A |
80 |
1.5 |
M8+M10 |
|
HC-SCP-A |
100 |
1.5 |
M8+M10 |
|
HC-SCP-A |
125 |
1.5 |
M8+M10 |
|
HC-SCP-A |
140 |
1.5 |
M8+M10 |
|
HC-SCP-A |
150 |
1.5 |
M8+M10 |
|
HC-SCP-A |
160 |
1.5 |
M8+M10 |
|
HC-SCP-A |
180 |
1.5 |
M8+M10 |
|
HC-SCP-A |
200 |
1.5 |
M8+M10 |
|
HC-SCP-A |
224 |
1.5 |
M8+M10 |
|
HC-SCP-A |
250 |
1.5 |
M8+M10 |
|
HC-SCP-A |
280 |
1.5 |
M8+M10 |
|
HC-SCP-A |
300 |
1.5 |
M8+M10 |
|
HC-SCP-A |
315 |
1.5 |
M8+M10 |
|
HC-SCP-A |
355 |
1.5 |
M8+M10 |
|
HC-SCP-A |
400 |
1.5 |
M8+M10 |
|
HC-SCP-A |
450 |
2.5 |
M10 |
|
HC-SCP-A |
500 |
2.5 |
M10 |
|
HC-SCP-A |
560 |
2.5 |
M10 |
|
HC-SCP-A |
600 |
2.5 |
M10 |
|
HC-SCP-A |
630 |
2.5 |
M10 |
|
HC-SCP-A |
710 |
2.5 |
M10 |
|
HC-SCP-A |
800 |
2.5 |
M10 |
|
HC-SCP-A |
900 |
2.5 |
M10 |
|
HC-SCP-A |
1000 |
2.5 |
M10 |
