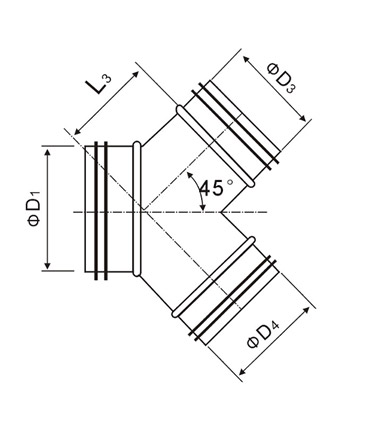

Specification
|
Item Code |
SIZE |
D |
d |
L |
|
HC-YPX |
100 80 |
98.8 |
78.8 |
130 |
|
HC-YPX |
100 100 |
98.8 |
98.8 |
140 |
|
HC-YPX |
125 100 |
123.8 |
98.8 |
150 |
|
HC-YPX |
125 125 |
123.8 |
123.8 |
170 |
|
HC-YPX |
160 100 |
158.7 |
98.8 |
195 |
|
HC-YPX |
160 125 |
158.7 |
123.8 |
200 |
|
HC-YPX |
160 160 |
158.7 |
158.7 |
205 |
|
HC-YPX |
180 100 |
100 |
100 |
215 |
|
... |
... |
... |
... |
... |

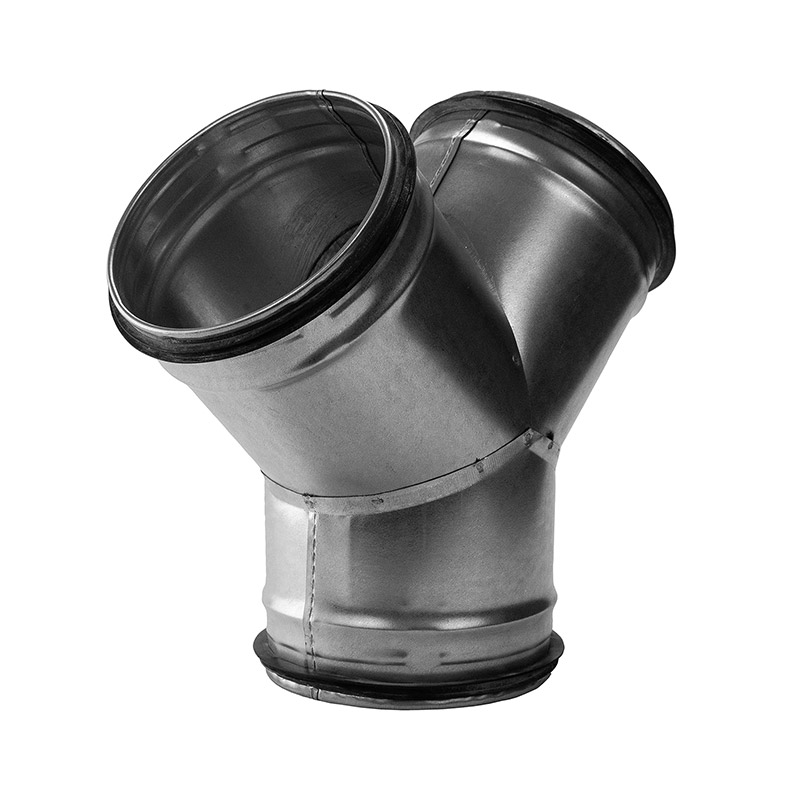

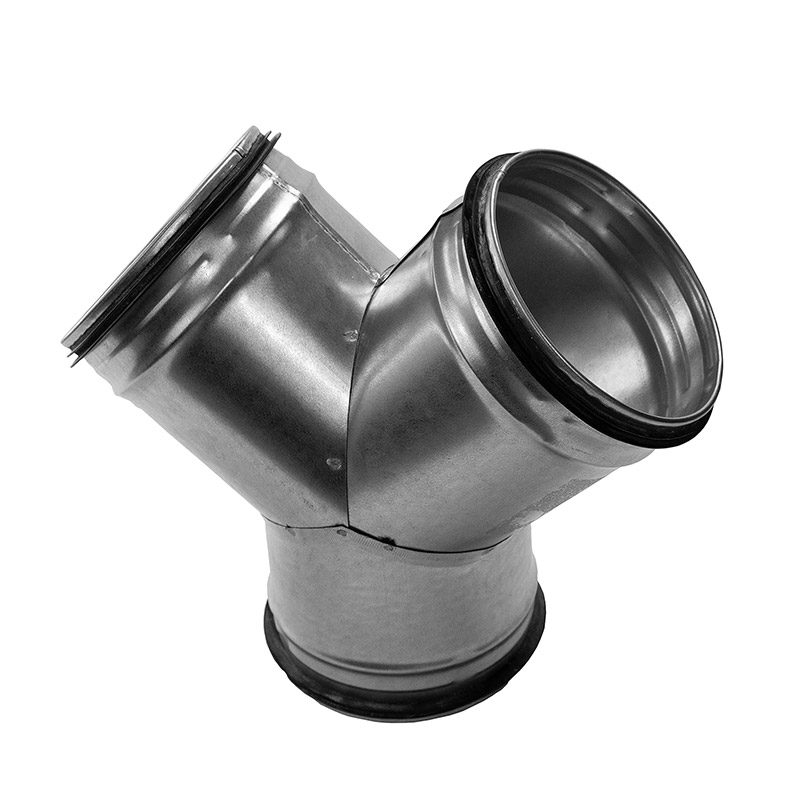

This three-hole, Y‑shaped duct connector features two branches, each equipped with a rubber gasket for a secure seal. It is designed to connect a dryer vent hose to exhaust fans, vent covers, and seals.
Suitable for both indoor and outdoor use, the connector withstands exposure to sun and rain.
The interior is smooth with an optimized curvature, significantly reducing wind resistance while efficiently distributing airflow throughout the ventilation system.
Its seamless construction ensures excellent leak‑proof performance—no air leakage after installation. Compact in size, it saves space and fits neatly into your setup.
