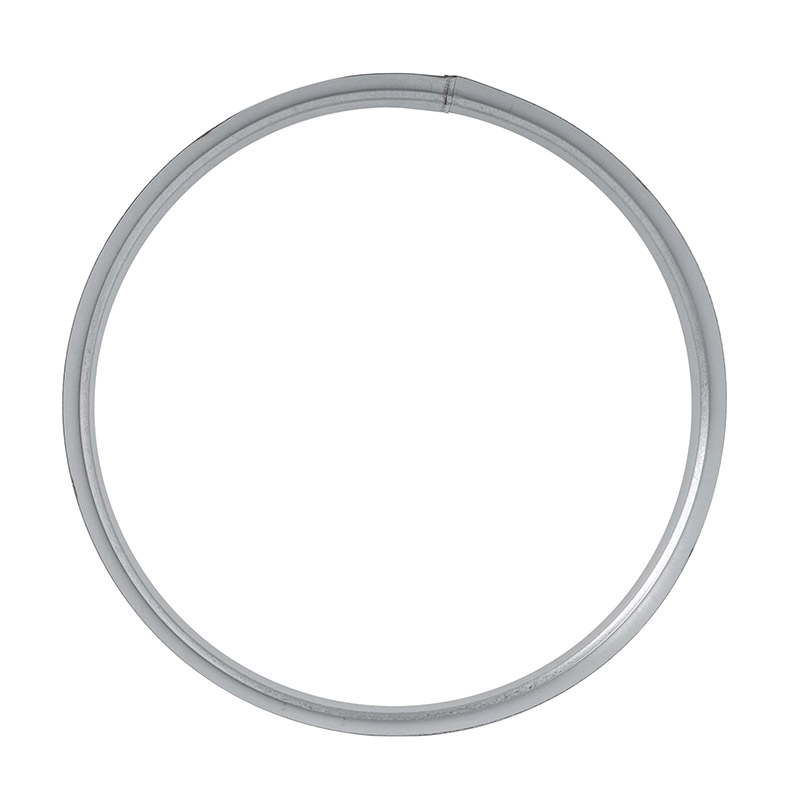

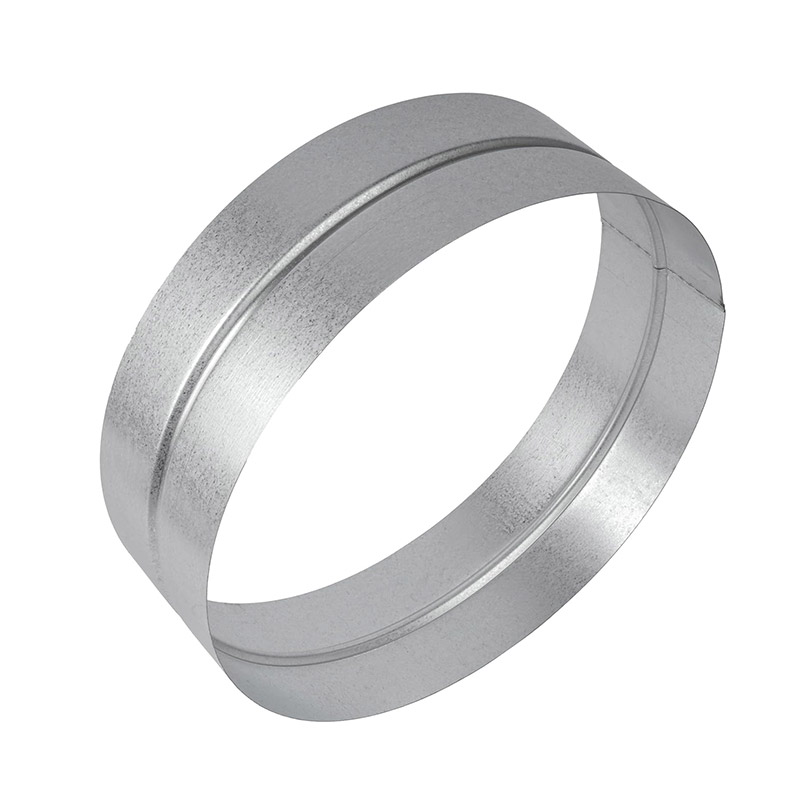

Galvanized Metal Duct Connector (also known as male socket), used for connecting two sections of spiral duct.
Function: Joins two spiral ducts together to form a longer pipeline system.
Material: Typically made of galvanized metal.
Compatibility: All spiral duct accessories (such as elbows, tees, etc.) are designed with male sockets, allowing direct insertion into standard (female socket) spiral ducts.
Installation: Typically requires the use of sealant, self-tapping screws, or rivets for securing and sealing during connection.
Application: Commonly used in HVAC (Heating, Ventilation, and Air Conditioning) systems, dust collection systems, etc.

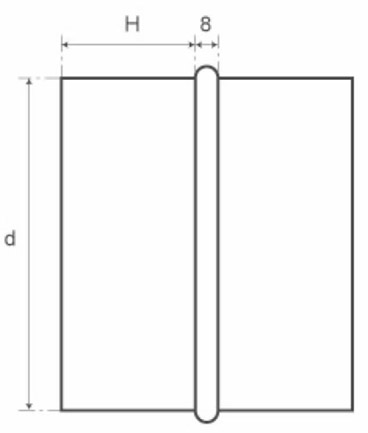

Specification
|
Item Code |
SIZE |
d |
H |
|
HC-V |
80 |
78.8 |
45 |
|
HC-V |
100 |
98.8 |
45 |
|
HC-V |
125 |
123.8 |
45 |
|
HC-V |
150 |
148.7 |
45 |
|
HC-V |
160 |
158.7 |
45 |
|
HC-V |
180 |
178.6 |
45 |
|
HC-V |
200 |
198.6 |
45 |
|
HC-V |
250 |
248.5 |
45 |
|
HC-V |
300 |
298.4 |
45 |
|
HC-V |
315 |
313.4 |
45 |
|
HC-V |
355 |
353.3 |
45 |
|
HC-V |
400 |
398.3 |
45 |
