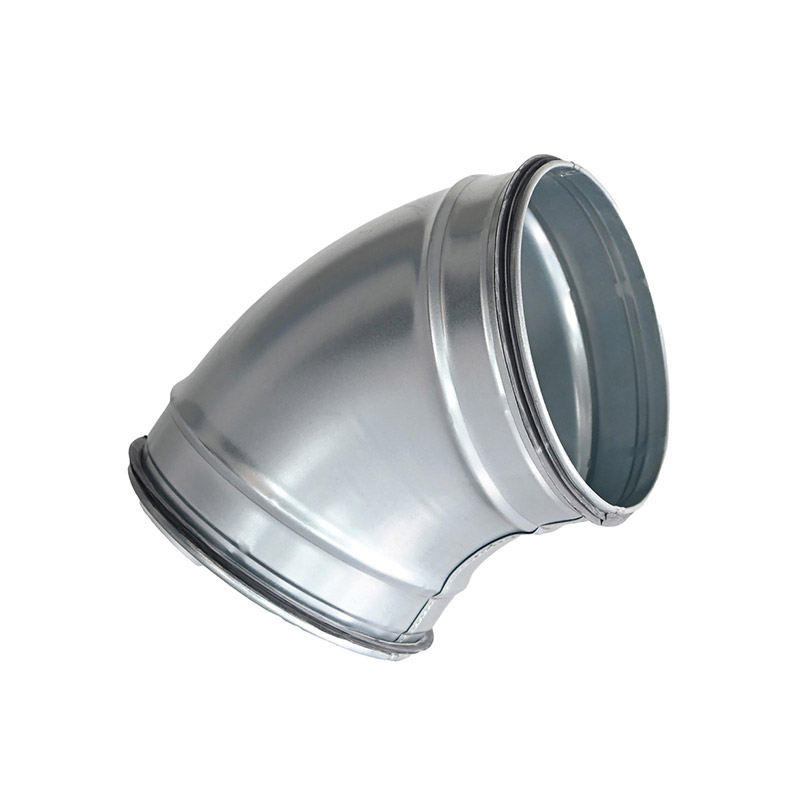

Material: Typically galvanized steel or aluminum.
Angle: 45 degrees.
Features: Zinc coating provides corrosion and rust resistance.
Sealing: Equipped with a rubber gasket to enhance airtightness.
Application: Commonly used in HVAC (Heating, Ventilation, and Air Conditioning) systems.

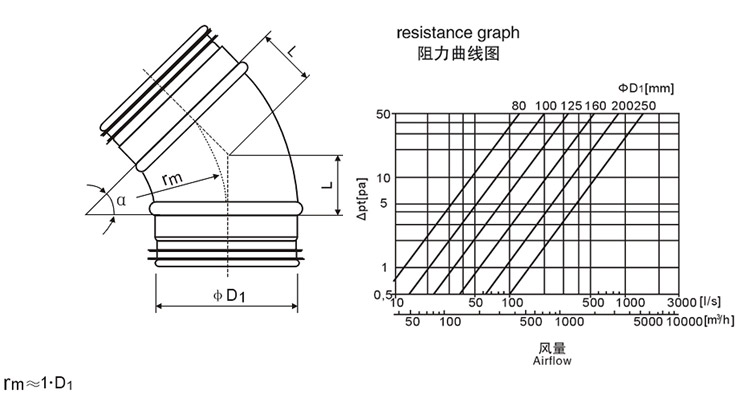

Specification
|
Size |
d |
A |
H |
|
80 |
78.9 |
100 |
40 |
|
100 |
98.9 |
100 |
40 |
|
125 |
123.9 |
125 |
40 |
|
150 |
148.9 |
150 |
40 |
|
160 |
158.9 |
160 |
40 |
|
180 |
178.9 |
180 |
40 |
|
200 |
198.9 |
200 |
40 |
