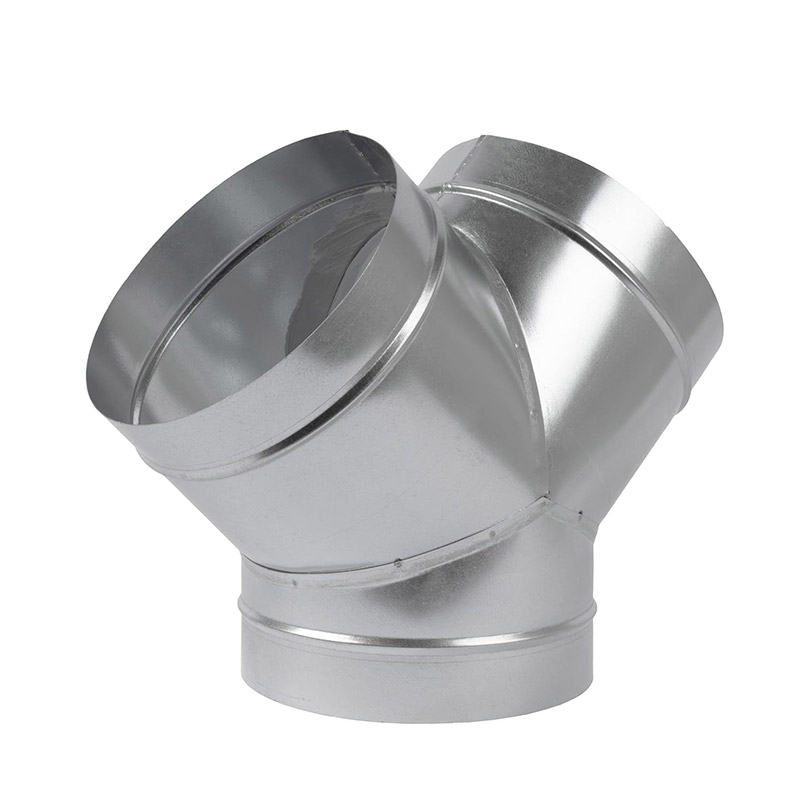

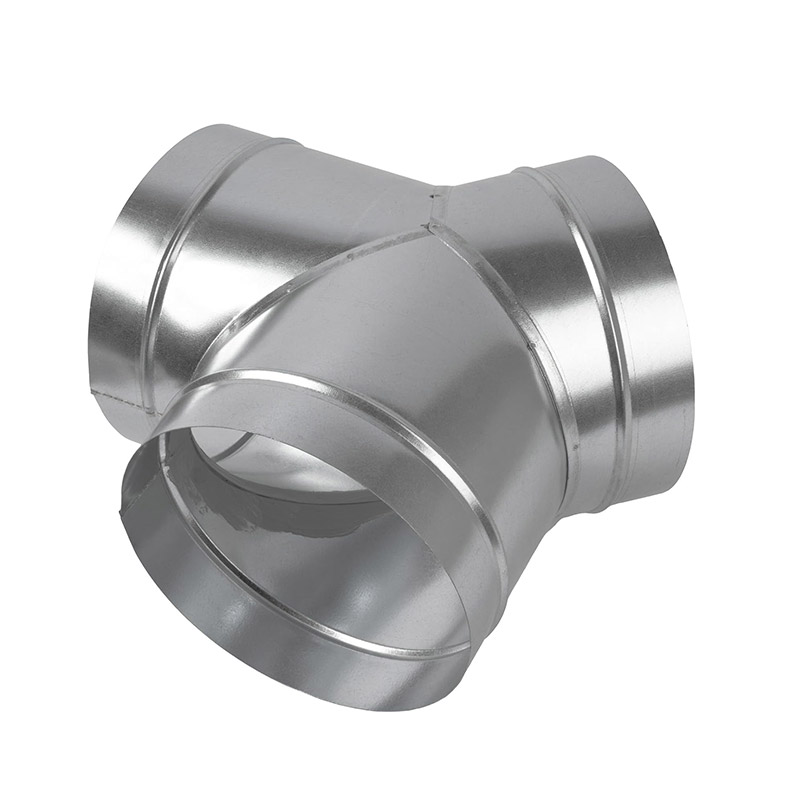

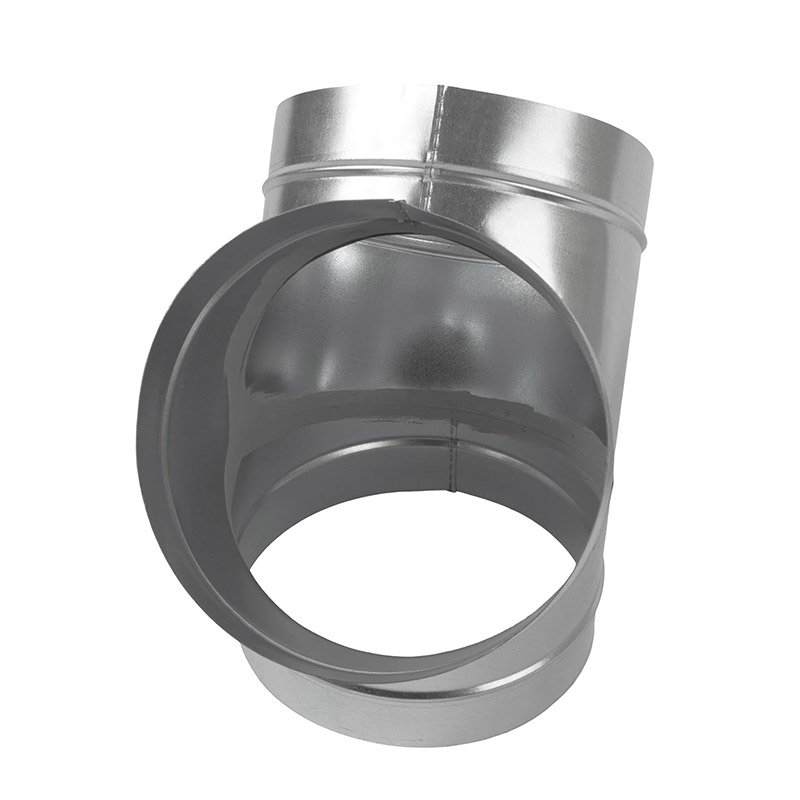

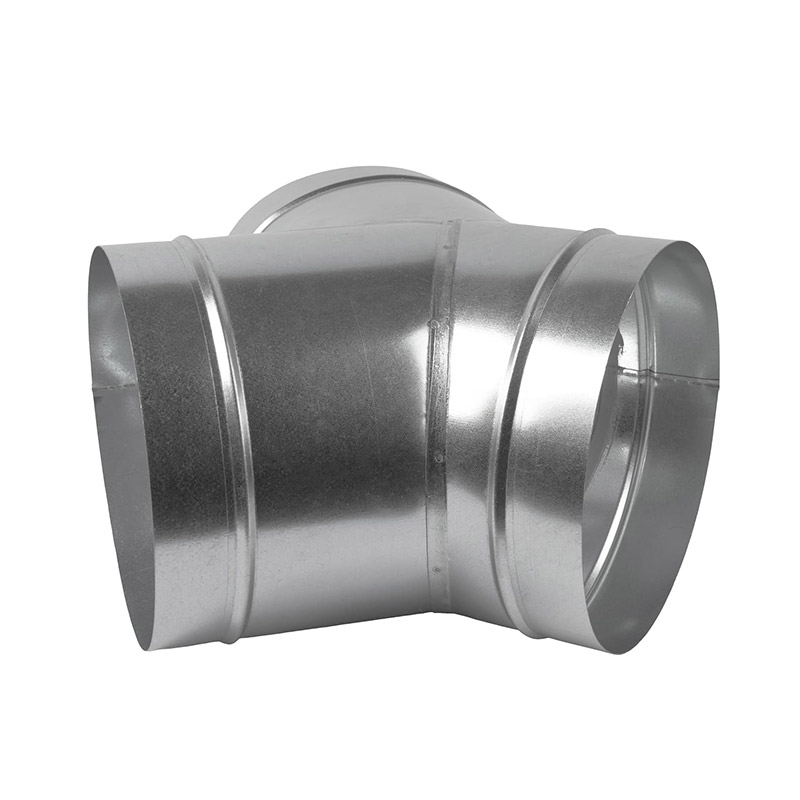

This Y-shaped, three-way 60°duct connector features two branches. It can be connected to exhaust fans, dryer vent covers, and vent seals.
Constructed from high-quality metal, the connector offers excellent durability, high strength, and good toughness.
The interior of the duct splitter is smooth, and its optimized curvature significantly reduces wind resistance while effectively directing airflow in ventilation systems.
Seamlessly designed for a reliable leak-proof connection, it ensures no air leakage after installation.
Compatibility & Installation:
Wipe the tee clean before use, align it with the hose, and secure it with aluminum foil tape.
Finally, install the clamp and tighten the screw to complete the connection.

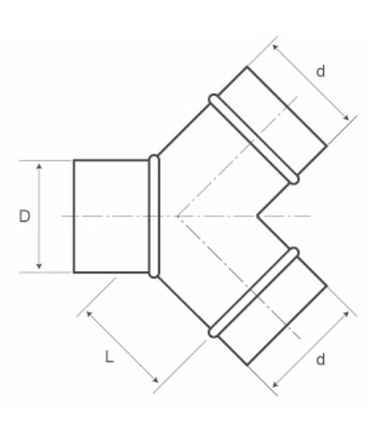

Specification
|
Item Code |
SIZE |
D |
d |
L |
|
HC-YP |
100 80 |
98.8 |
78.8 |
130 |
|
HC-YP |
100 100 |
98.8 |
98.8 |
140 |
|
HC-YP |
125 100 |
123.8 |
98.8 |
150 |
|
HC-YP |
125 125 |
123.8 |
123.8 |
170 |
|
HC-YP |
160 100 |
158.7 |
98.8 |
195 |
|
HC-YP |
160 125 |
158.7 |
123.8 |
200 |
|
HC-YP |
160 160 |
158.7 |
158.7 |
205 |
|
HC-YP |
180 100 |
100 |
100 |
215 |
|
... |
... |
... |
... |
... |
