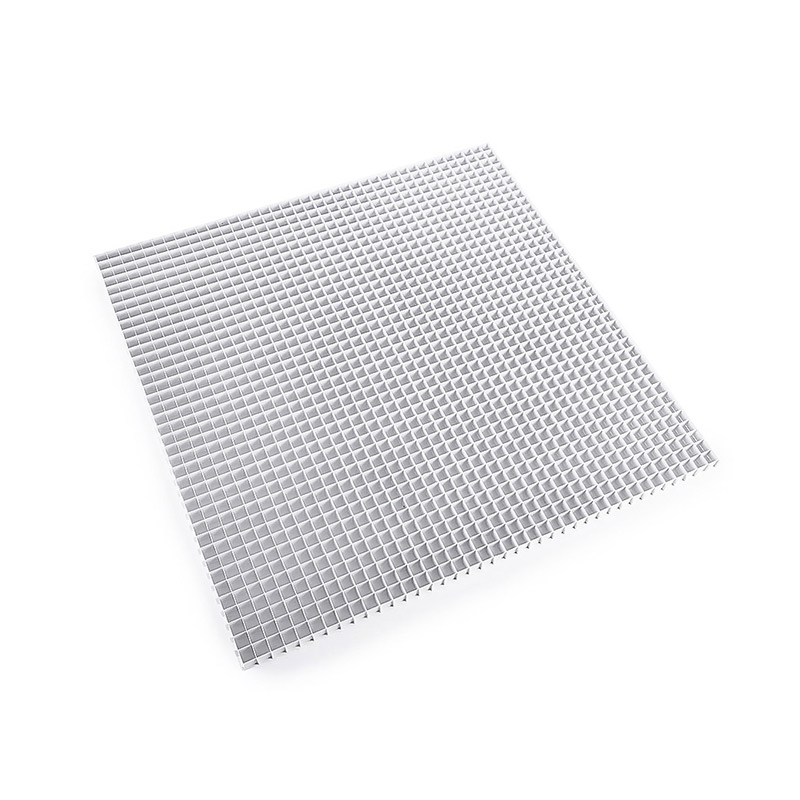

Egg Crate Grille For HVAC System
Model : HC-EG-E

Material: Aluminum eggcrate core

Finish Options: Mill finish (natural aluminum) or powder-coated white (RAL 9010, 9016)

Core Pattern: Standard eggcrate lattice design

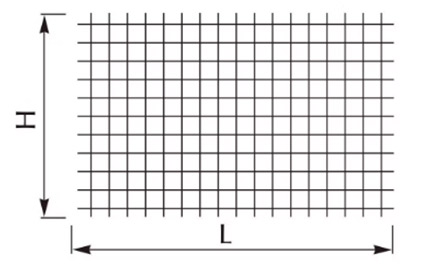

Specification

Item Code

Size
(MM)

HC-EG-E

1200x1200mm 12.7x12.7x0.35mm

HC-EG-E

1200x600mm 12.7x12.7x0.35mm

HC-EG-E

1200x1200mm 12.7x12.7x0.38mm

HC-EG-E

1200x600mm 12.7x12.7x0.38mm

HC-EG-E

1220x1220mm 12.7x12.7x0.48mm

HC-EG-E

1220x1220mm 15x15x0.48mm

A standalone eggcrate core unit, ideal for integration into custom grille frames or ventilation assemblies where standard sizes are not applicable.

Key Features
Customizable: Can be easily cut to different on-site dimensions
Made-to-Order: Custom factory sizes available upon request
Flexible Application: Suitable for bespoke ventilation projects and retrofit installations

Note: This product is supplied as a core-only unit and does not include an outer frame
