Modular & Continuous Installation: Can be installed as individual units or combined into continuous runs using alignment joining strips for a seamless appearance.
Adjustable Airflow: Features a uniquely designed pattern deflector, adjustable from the front, allowing precise horizontal and vertical direction of the air stream.
Versatile Slot Options: Available in configurations ranging from 1 to 8 slots per module to match varying airflow requirements.
Architectural Design: Clean, low-profile appearance blends discreetly into both commercial and high-end residential interiors.
Simplified Installation: Designed for easy mounting with removable center T-Bar sections, accommodating multiple fixing methods.

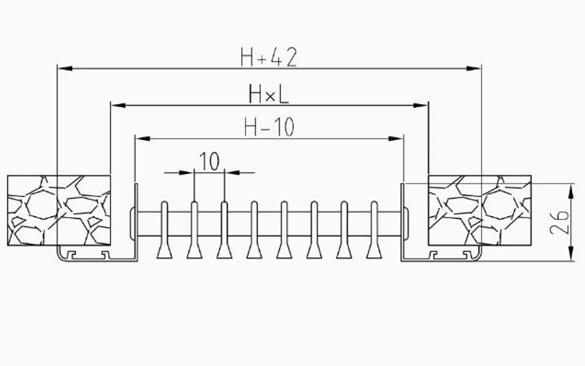

Specification
|
HC-LBD |
H(mm) |
L(mm) |
|
(mm) |
||
|
1 Slots |
44.5 |
Standard Lat 495mm,/990mm/1195mm/1495mm,/1795mm,and other L dimension is available at required |
|
2 Slots |
88 |
|
|
3 Slots |
131.5 |
|
|
4 Slots |
175 |
Engineered for seamless integration into ceilings or side walls, the LSD Linear Slot Diffuser is designed to efficiently supply cooled or heated air, even under conditions of significant temperature differentials. Its modular design and adjustable airflow control make it a versatile solution for modern architectural and HVAC applications.
Applications
Ideal for offices, conference rooms, hotels, healthcare facilities, and retail spaces where precise air distribution and aesthetic integration are essential.
