Optimized for Return Air: Engineered specifically for return air systems, featuring an integrated filter setup.

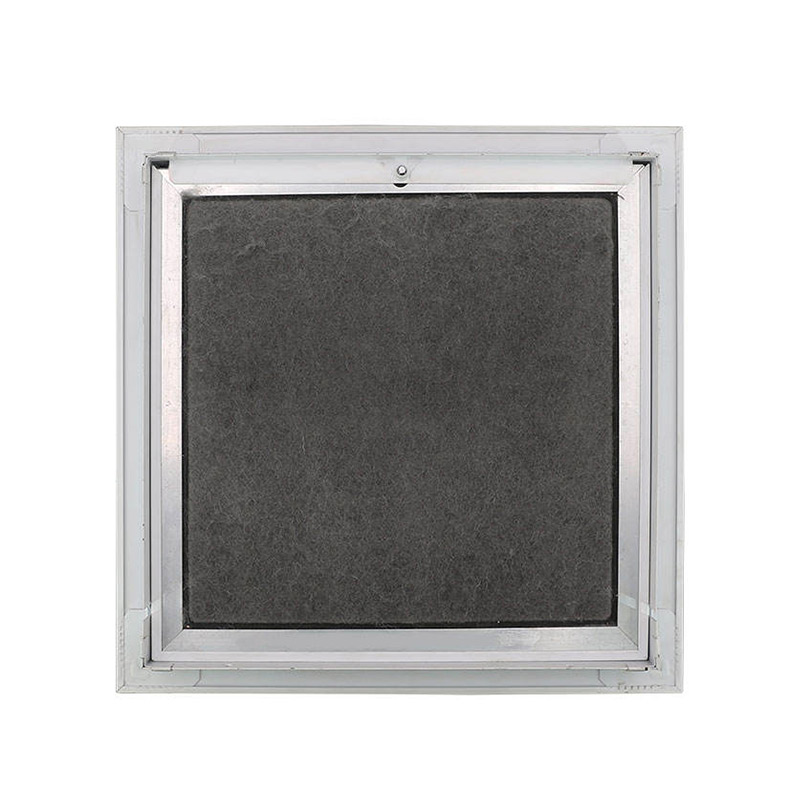

Easy Maintenance: Equipped with removable or hinged cores for quick and convenient filter access and servicing.
High Free Area: Offers 90% free airflow area, ensuring minimal air resistance and optimal efficiency in return air applications.
Specification
|
Egg Crate Grille with Filter |
||
|

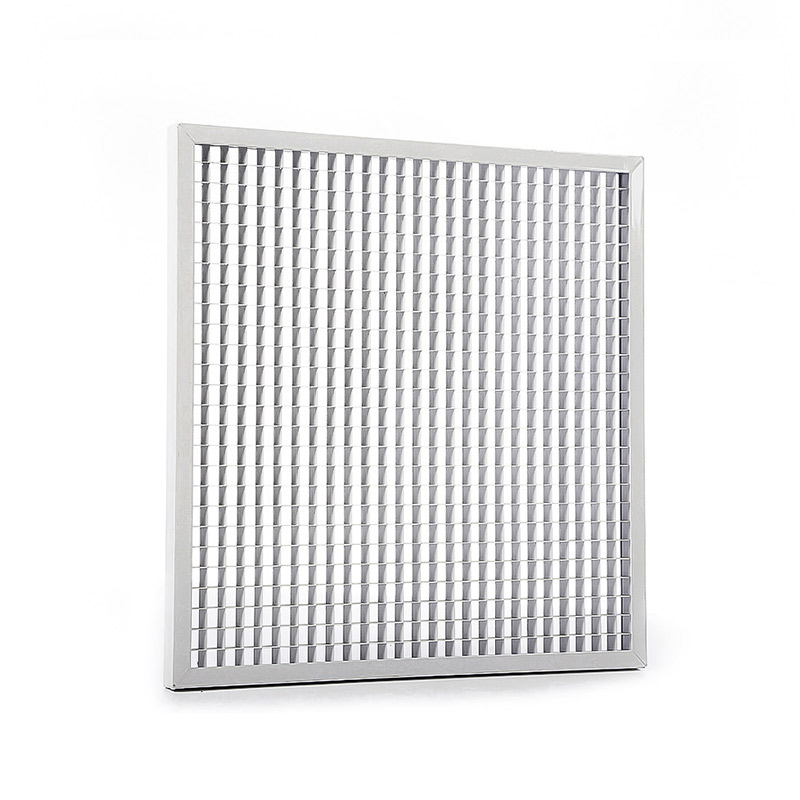

Square lattice Core |
Face size |
Neck Size |
|
12.7*12.7*12.7 |
250*250 |
200*200 |
|
12.7*12.7*12.7 |
300*300 |
250*250 |
|
12.7*12.7*12.7 |
350*350 |
300*300 |
|
12.7*12.7*12.7 |
400*400 |
350*350 |
|
12.7*12.7*12.7 |
450*450 |
400*400 |
|
12.7*12.7*12.7 |
500*500 |
450*450 |
|
12.7*12.7*12.7 |
595*595 |
547*547 |
|
12.7*12.7*12.7 |
600*600 |
550*550 |
Designed for efficient return air applications with integrated filter access, the EG-A model combines high-performance airflow with easy maintenance.
Construction: Full aluminum, lightweight and durable.

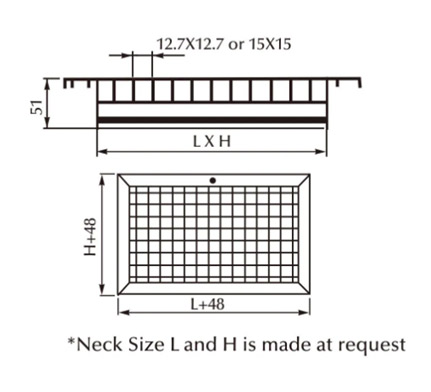

Core Options: Square lattice cores available in 12.7mm × 12.7mm or 15mm × 15mm patterns.
Finish: Durable powder-coated surface. Standard colors: RAL 9010 or RAL 9016.
Ordering Information
Standard sizes are available. Custom dimensions can be manufactured upon request.
Ideal For
Commercial HVAC return air systems
Clean rooms and laboratories
Any application requiring high airflow with easy filter maintenance
