Weather-Resistant Design: Prevents rainwater ingress for reliable outdoor use.
Integrated Drainage: The included outlet directs water away from the building wall.

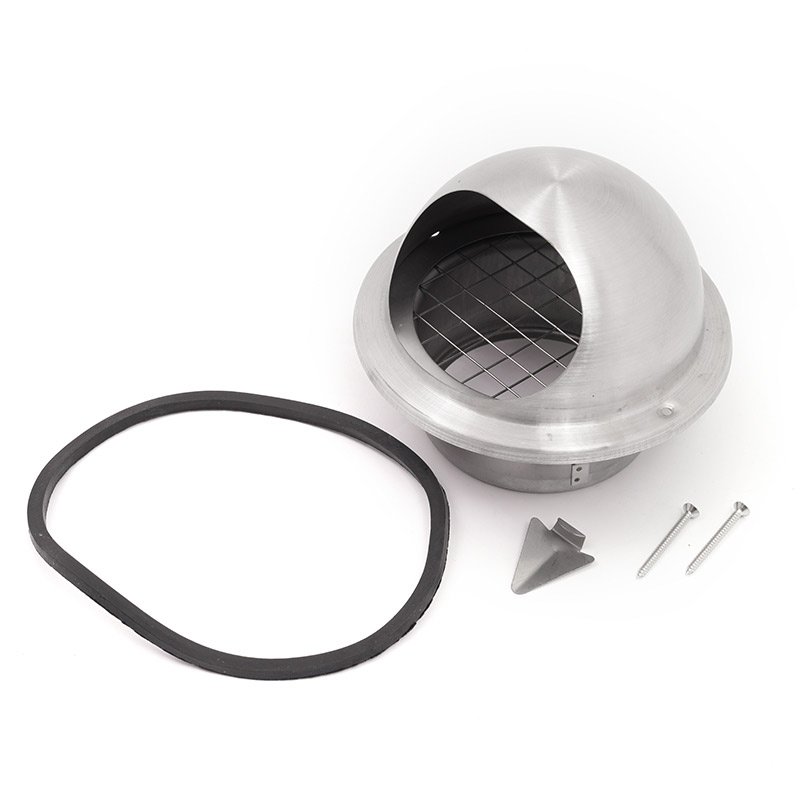

Secure Sealing & Mounting: Features a round rubber gasket, three brackets, and a safety lock with two screws.
Dual Function: Suitable for both air supply and exhaust in ventilation systems.
Application: Ideal for kitchen and bathroom extractor hoods, as well as general ventilation—perfect for outdoor installation.

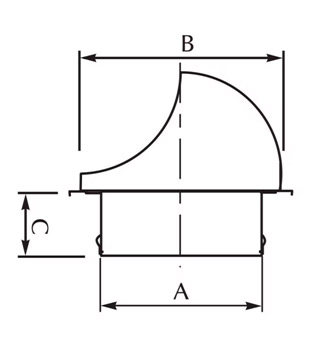

Specification
|
HC-SVLB |
A(mm) |
B(mm) |
C(mm) |
|
80 |
75 |
103 |
40 |
|
100 |
97 |
132 |
52 |
|
125 |
120 |
165 |
52 |
|
150 |
145 |
192 |
62 |
|
160 |
155 |
192 |
62 |
|
180 |
175 |
253 |
65 |
|
200 |
195 |
253 |
74 |

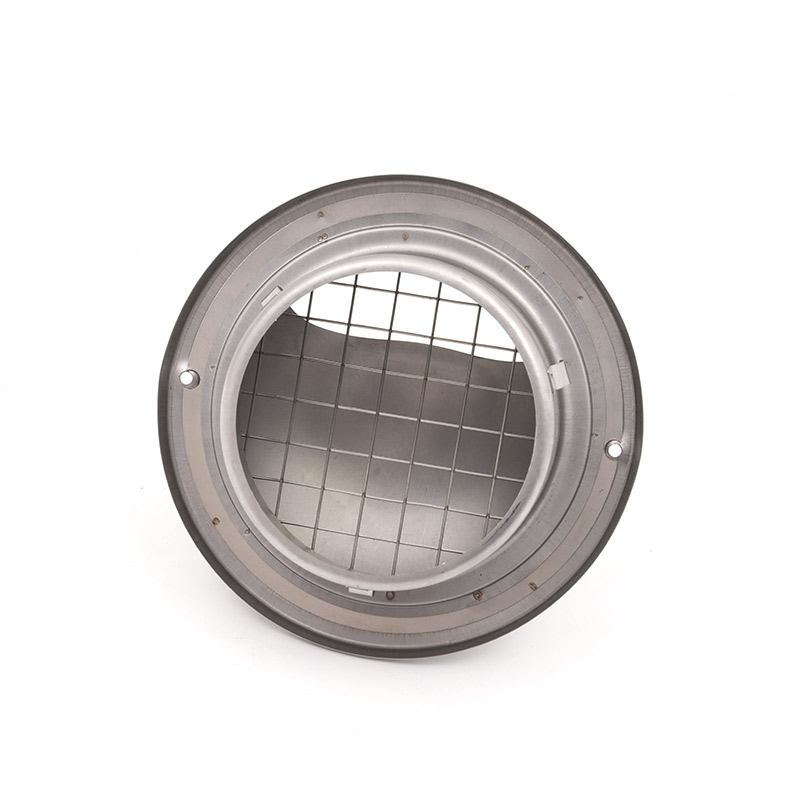

Stainless External Vent Louveris crafted from SUS304/2B stainless steel through a series of precision processes including stamping, stretching, sanding, and welding. The material thickness varies according to the product model.
Featuring a spherical design that effectively shields against wind and rain, it comes equipped with internal louvres and an insect screen to prevent pests and rodents. The surface is finished with a durable sanded polish that resists deformation and maintains its appearance over time.
Discreet and visually unobtrusive, it blends seamlessly with building exteriors and is ideal for direct outdoor exhaust applications in various constructions.
Available in multiple below sizes, making it easy to select based on the exterior wall aperture.
