Robust Construction: Fully extruded aluminium body, available in satin anodized or powder coated white finish (RAL9010/9016).
Easy Maintenance: Removable central core allows for quick cleaning and service without removing the diffuser.
Optimized Airflow: Adjustable concentric cone design ensures even air distribution and reduced drafts.
Integrated Flexibility: Compatible with a wide range of wall mounted and in line fans for versatile installation.
Optional Accessories: Available with Opposite Blade Damper (OBD) and neck adapters for enhanced control and adaptability.
Specification
|

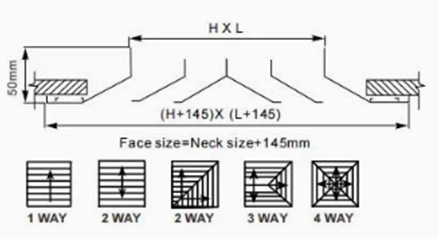

HC-SD (mm) |
Neck Size / Face Size |
|
150mm×150mm / 300mm×300mm |
|
|
225mm×225mm / 375mm×375mm |
|
|
300mm×300mm / 450mm×450mm |
|
|
375mm×375mm / 525mm×525mm |
|
|
450mm×450mm / 600mm×600mm |

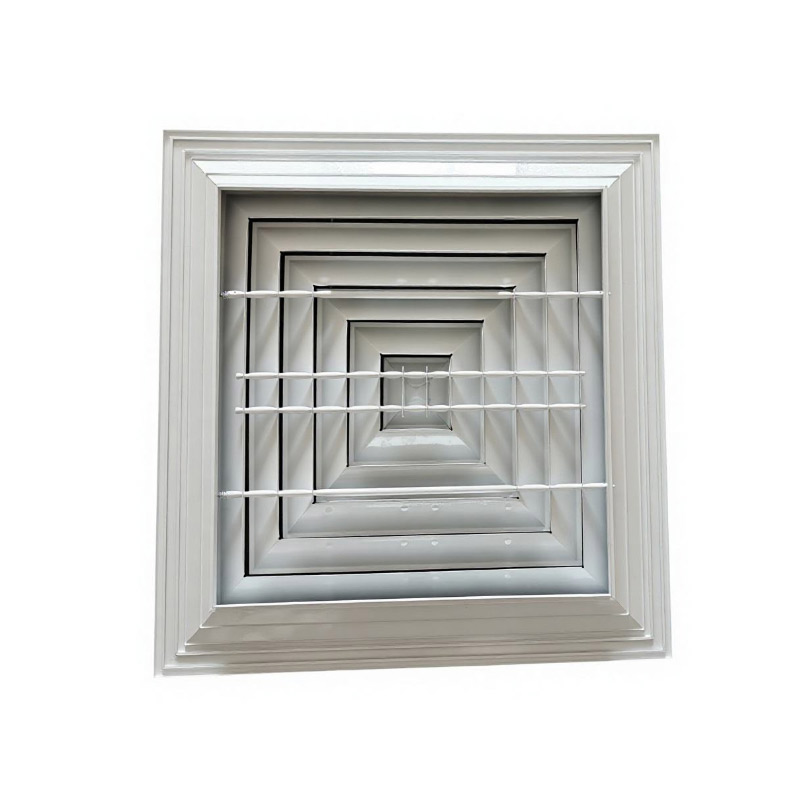

Designed for management in both supply and exhaust applications, the HC-SD Series Aluminium Square Ceiling Diffuser ensures efficient distribution of cooled or heated air with a clean, modern aesthetic. Engineered for durability and ease of maintenance, it is an ideal solution for commercial, institutional, and high residential HVAC systems.
Applications
Ideal for offices, healthcare facilities, hotels, and retail spaces where reliable, low maintenance air diffusion is required.
