The swirl diffuser HC-SDCB be used for either supply or exhaust air application.
The diffuser be supplied with either circular or square face plate depending on architectural requirements.
The face plate is in galvanized sheet steel, powder coated white(RAL 9010 or RAL 9016).
Control blades are made from polystyrol, with black as standard or white on request.
All sizes are suitable for flush mounting into a ceiling.

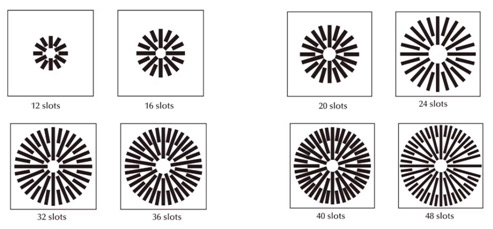

Available in the sizes above.
Specification
|
HC-SDCB |
size(mm) |
Slot Number |
|
(mm) |
||
|
320×12 |
320×320 |
12 |
|
420×16 |
420×420 |
16 |
|
520×20 |
520×520 |
20 |
|
600×24 |
600×600 |
24 |
|
600×32 |
600×600 |
32 |
|
645×36 |
645×645 |
36 |
|
695×40 |
695×695 |
40 |
|
820×48 |
820×820 |
48 |
