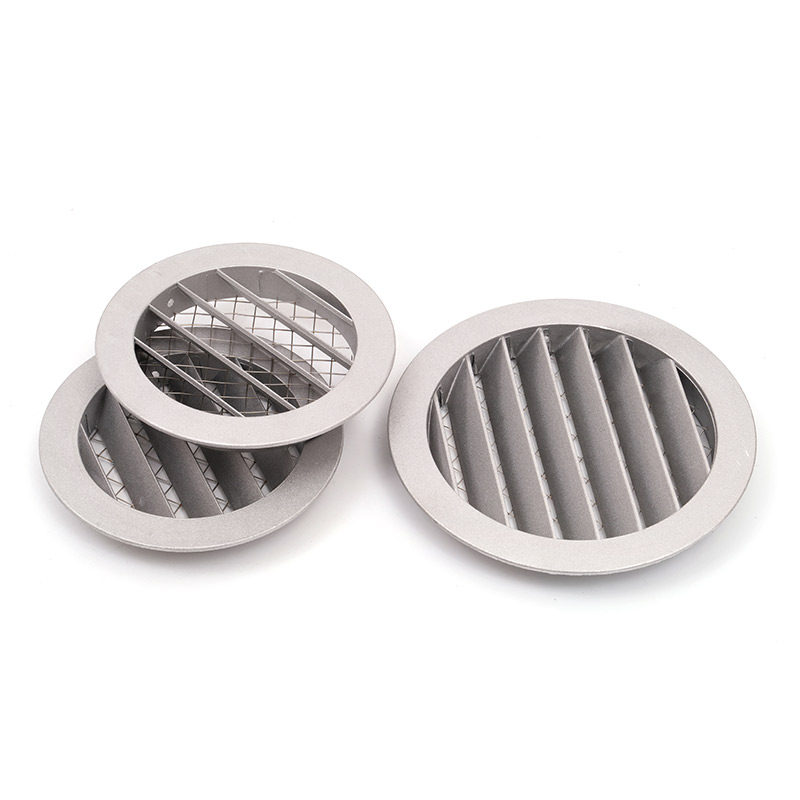

HC-ELC is mainly used as an intakegrille for fresh air.
It is moulded of aluminium.
It has a round connection whichfits directly into the duct.
The back of the grille is equippedwith a stainless steel wire net, asprotection against small animals.
Fixed with screws.
Specification
|

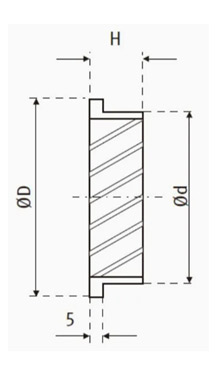

HC-ELC |
D(mm) |
d(mm) |
H(mm) |
|
100 |
125 |
100 |
20 |
|
125 |
150 |
125 |
20 |
|
150 |
180 |
150 |
18 |
|
160 |
185 |
160 |
18 |
|
200 |
225 |
200 |
20 |
|
250 |
275 |
250 |
20 |
|
315 |
350 |
315 |
20 |
|
400 |
440 |
400 |
40 |
The HC-ELC is primarily designed as an air intake grille for fresh air supply at the end of air conditioning ducts.
Constructed from durable aluminum, it features a round connection that fits directly into standard ductwork.
The rear side is fitted with a stainless steel wire mesh to prevent birds and other small animals from entering.
Installation is quick and hassle free—easily secured in place with screws.
Suitable for both air intake and exhaust use.
Designed for indoor or outdoor installation.
