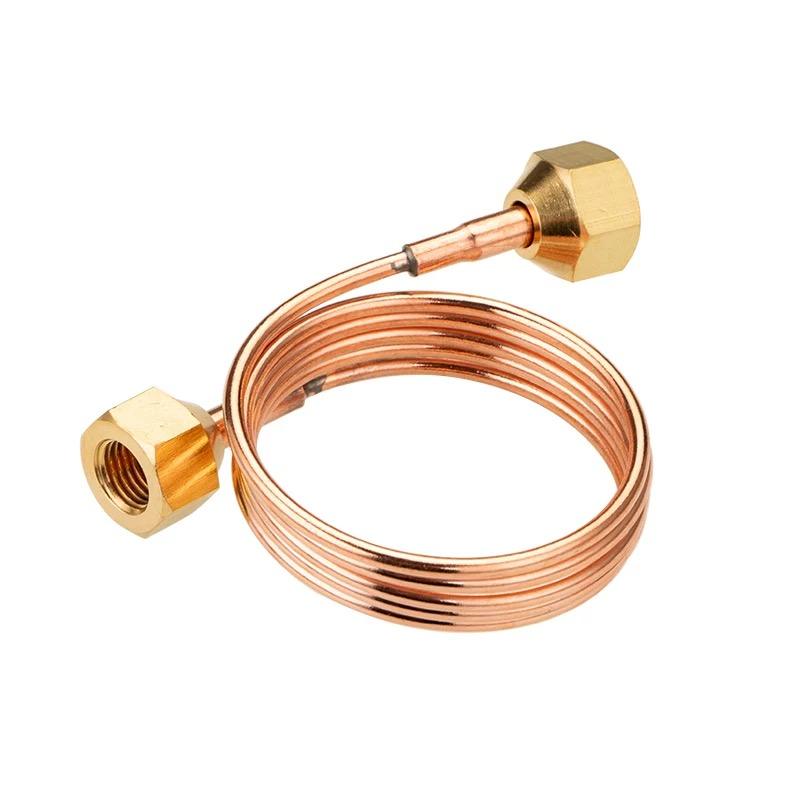

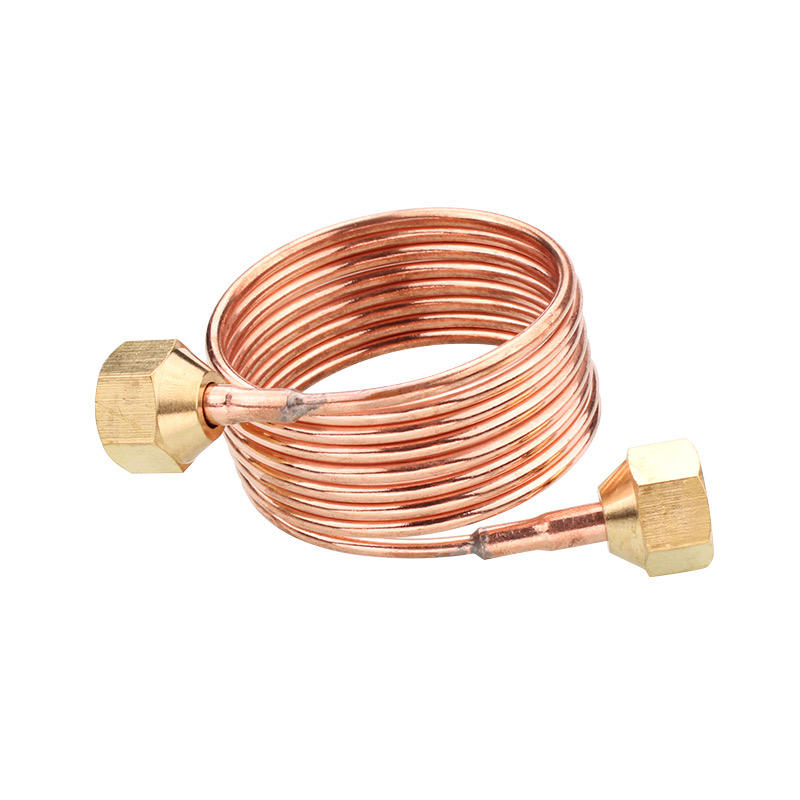

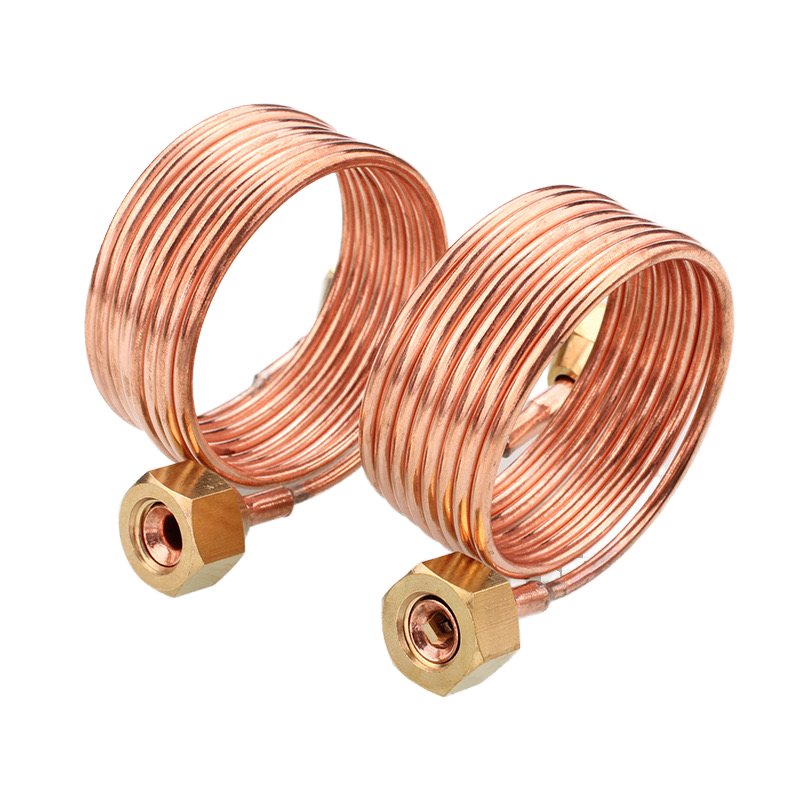

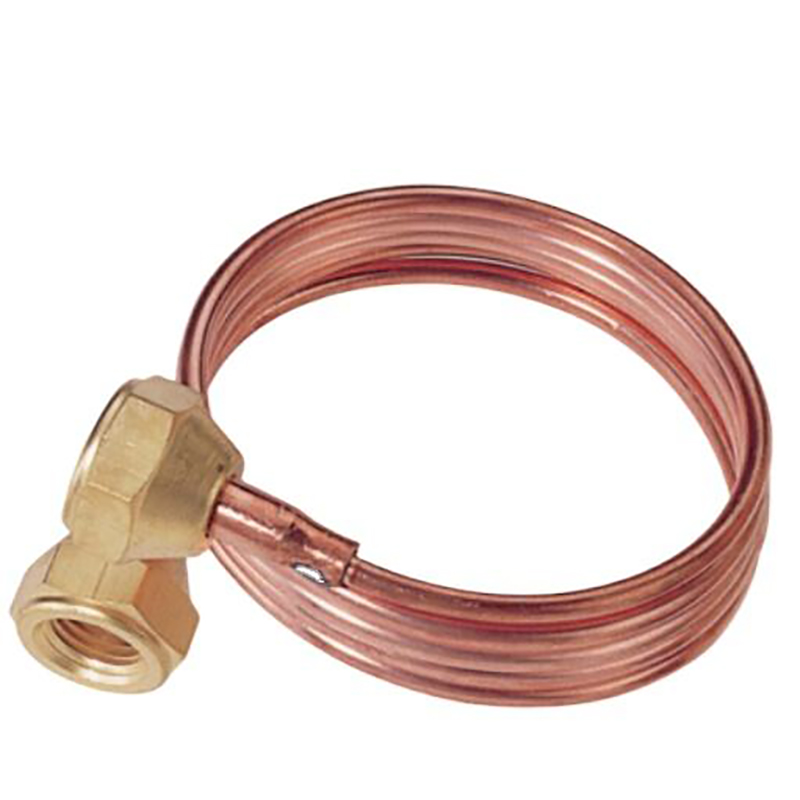

It is commonly used in refrigeration systems. Its key features and applications include:
Material: Made of soft copper tubing with good flexibility.
Connector: Equipped with brass fittings for easy connection.
Application: Often used in refrigeration components of refrigerators, air conditioners, etc., or as an oil tube kit for mechanical oil gauges.
Function: Serves as a restrictor device in refrigeration systems to control refrigerant flow.
Specification
|
Item Code |
Inner Dia. |
Outer Dia. |
Min.Bend Radius |
Working Pressure |
Working Temperature |
||
|
mm |
mm |
mm |
Mpa |
psi |
min.ºC |
max.ºC |
|
|
HC-CT-01 |
2.6 |
5.8 |
15 |
19.6 |
2843 |
-40 |
130 |
|
HC-CT-02 |
5 |
10 |
20 |
9.8 |
1421 |
-40 |
130 |
|
HC-CT-03 |
8.2 |
13.5 |
30 |
9.8 |
1421 |
-40 |
130 |
|
HC-CT-04 |
11.2 |
16.2 |
40 |
9.8 |
1421 |
-40 |
130 |
|
HC-CT-05 |
14.3 |
20 |
50 |
9.8 |
1421 |
-40 |
130 |
|
HC-CT-06 |
17.3 |
24 |
50 |
9.8 |
1421 |
-40 |
130 |
