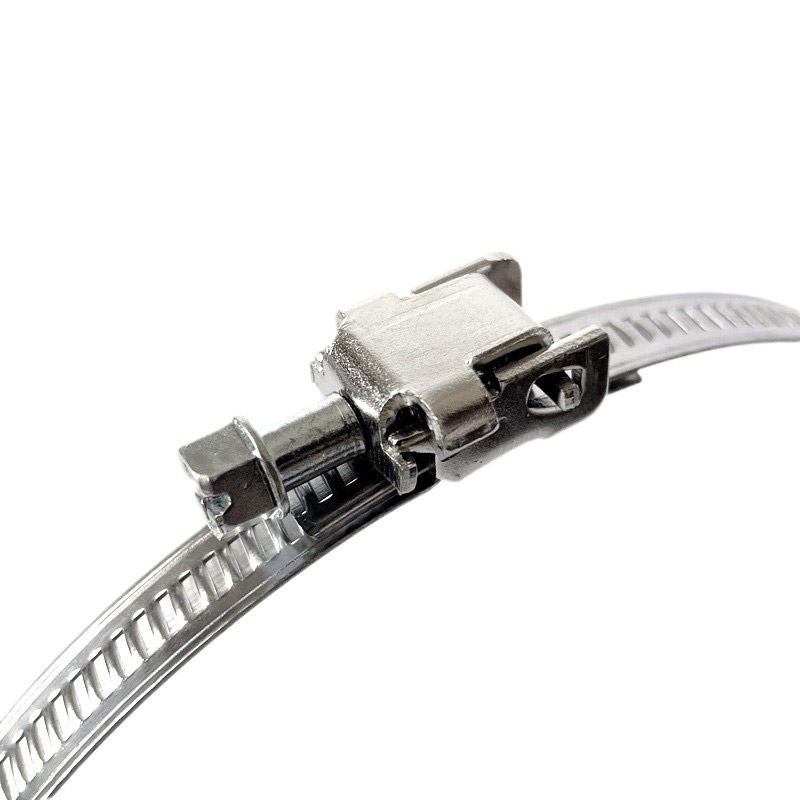

Used for connecting flexible air ducts, providing reliable and secure connections.
Made of stainless steel for corrosion resistance.
Adjustable size to accommodate different diameters.
Simple design for easy installation and removal.
Material: W1, W2, W4, W5(See as below)
Specification
|
Material |
Band |
Housing |
Screw |
Suggested install torque |
|
W1 |
Zinc plated steel |
Zinc plated steel |
Zinc plated steel |
3.0Nm |
|
W2 |
AISI 201SS |
AISI 201SS |
Zinc plated steel |
4.9Nm |
|
W4 |
AISI 201SS/304SS |
AISI 201SS/304SS |
AISI 201SS/304SS |
|
|
W5 |
AISI 316SS |
AISI 316SS |
AISI 316SS |
|
Size(mm) |
Band Width(mm) |
Pcs/Bag |
Pcs/CTN |
Suggested Install Torque |
|
8-12 |
9 |
100 |
1000 |
4.0Nm |
|
10-16 |
9 |
100 |
1000 |
4.0Nm |
|
12-22 |
9/12 |
100 |
1000 |
4.0Nm |
|
16-27 |
9/12 |
100 |
1000 |
4.0Nm |
|
20-32 |
9/12 |
50 |
1000 |
4.9Nm |
|
25-40 |
9/12 |
50 |
500 |
4.9Nm |
|
30-45 |
9/12 |
50 |
500 |
4.9Nm |
|
35-50 |
9/12 |
50 |
500 |
4.9Nm |
|
40-60 |
9/12 |
50 |
500 |
4.9Nm |
|
50-70 |
9/12 |
25 |
500 |
4.9Nm |
|
60-80 |
9/12 |
25 |
500 |
4.9Nm |
|
70-90 |
9/12 |
25 |
500 |
4.9Nm |
|
80-100 |
9/12 |
25 |
250 |
4.9Nm |
|
90-110 |
9/12 |
25 |
250 |
4.9Nm |
|
110-130 |
9/12 |
10 |
200 |
4.9Nm |
|
120-140 |
9/12 |
10 |
200 |
4.9Nm |
|
130-150 |
9/12 |
10 |
200 |
4.9Nm |
|
140-160 |
9/12 |
10 |
200 |
4.9Nm |
|
Sizes can be adjusted as per enquiry |
||||
