Galvanized Sheet Metal Plenum Collars
Model : HC-PCO-A
PCO-A and PCO-B Plenum Collars are designed for a wide range of HVAC applications, providing a secure transition from the flat surface of a plenum (whether metal, duct board, or insulated) to round pipe or insulated flexible duct. Compatible with duct board as well as internally lined or unlined plenums, these galvanized steel collars feature extra-long tabs to accommodate most standard duct board thicknesses, ensuring a stable and reliable connection.

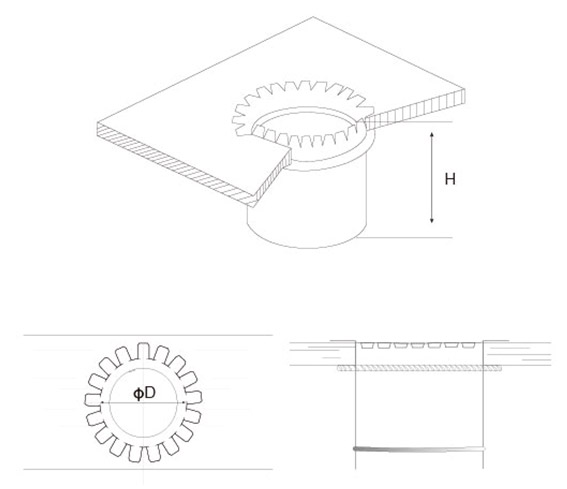

Specification

Item Code

Size

Φd(mm)

H(mm)

t(mm)

HC-PCO-A

80

97

152

0.5

HC-PCO-A

100

99

152

0.5

HC-PCO-A

125

124

152

0.5

HC-PCO-A

150

148.9

152

0.5

HC-PCO-A

160

158.9

152

0.5

HC-PCO-A

200

198.9

152

0.5

HC-PCO-A

250

248.9

152

0.5

HC-PCO-A

315

313.8

152

0.5

HC-PCO-A

355

353.8

152

0.5

HC-PCO-A

400

398.8

152

0.5

This component enables the connection of round pipe or insulated flexible duct to a flat surface, serving as the starting point of a duct run.
It is compatible with most common HVAC system types for broad application and can be used with both internally lined and unlined plenums.
