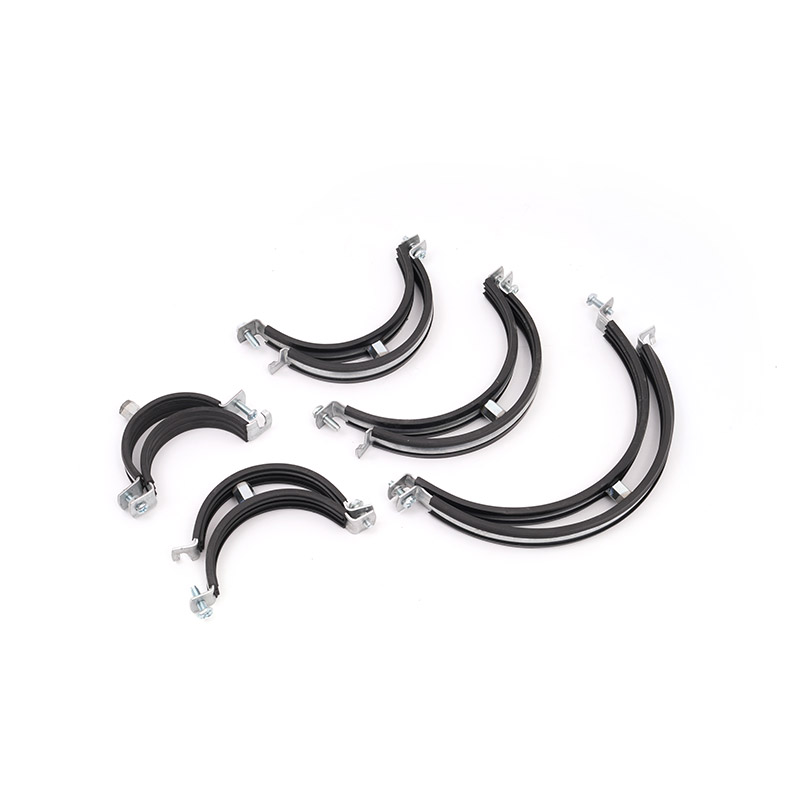

Material: Galvanized Iron (GI).
Features: Available with rubber lining (or unlined) to reduce vibration and noise.
Function: Suitable for securing pipes to walls or ceilings.
Durability: The galvanized surface provides enhanced corrosion resistance.

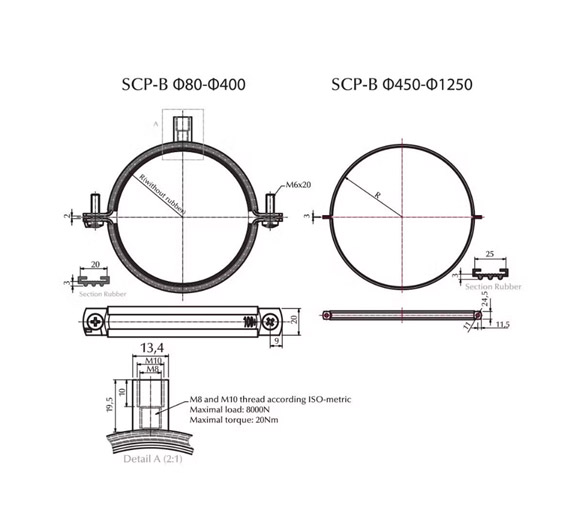

Specification
|
Item Code |
SIZE |
Thickness |
Connection nut |
|
HC-SCP-B |
80 |
1.5 |
M8+M10 |
|
HC-SCP-B |
100 |
1.5 |
M8+M10 |
|
HC-SCP-B |
125 |
1.5 |
M8+M10 |
|
HC-SCP-B |
140 |
1.5 |
M8+M10 |
|
HC-SCP-B |
150 |
1.5 |
M8+M10 |
|
HC-SCP-B |
160 |
1.5 |
M8+M10 |
|
HC-SCP-B |
180 |
1.5 |
M8+M10 |
|
HC-SCP-B |
200 |
1.5 |
M8+M10 |
|
HC-SCP-B |
224 |
1.5 |
M8+M10 |
|
HC-SCP-B |
250 |
1.5 |
M8+M10 |
|
HC-SCP-B |
280 |
1.5 |
M8+M10 |
|
HC-SCP-B |
300 |
1.5 |
M8+M10 |
|
HC-SCP-B |
315 |
1.5 |
M8+M10 |
|
HC-SCP-B |
355 |
1.5 |
M8+M10 |
|
HC-SCP-B |
400 |
1.5 |
M8+M10 |
|
HC-SCP-B |
450 |
2.5 |
M10 |
|
HC-SCP-B |
500 |
2.5 |
M10 |
|
HC-SCP-B |
560 |
2.5 |
M10 |
|
HC-SCP-B |
600 |
2.5 |
M10 |
|
HC-SCP-B |
630 |
2.5 |
M10 |
|
HC-SCP-B |
710 |
2.5 |
M10 |
|
HC-SCP-B |
800 |
2.5 |
M10 |
|
HC-SCP-B |
900 |
2.5 |
M10 |
|
HC-SCP-B |
1000 |
2.5 |
M10 |
