/HC-SRD

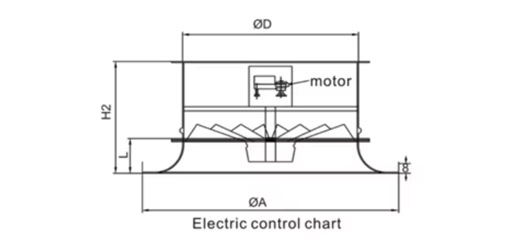

Specification
|
Specification ØD |
200 |
250 |
315 |
350 |
400 |
500 |
630 |
|
ØA |
300 |
360 |
462 |
500 |
568 |
718 |
878 |
|
H2 short height |
85
|
90
|
118
|
140 |
152
|
188
|
246
|
|
H2 high height |
145 |
166 |
200 |
218 |
236 |
260 |
304 |
|
L |
38 |
41 |
63 |
76 |
80 |
100 |
125 |
|
Mounting distance ØB |
260 |
310 |
400 |
435 |
500 |
640 |
800 |

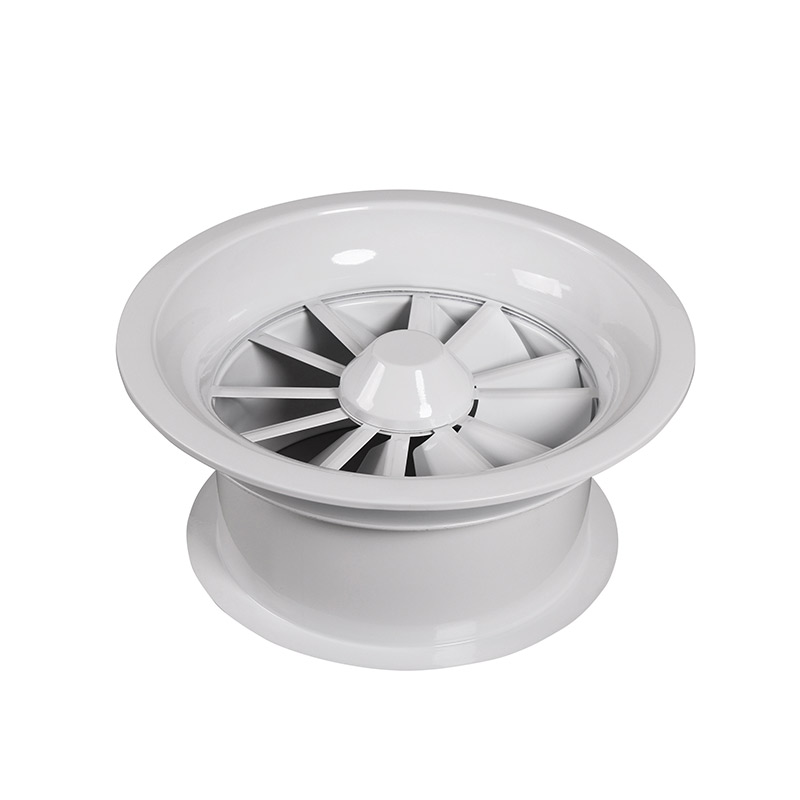

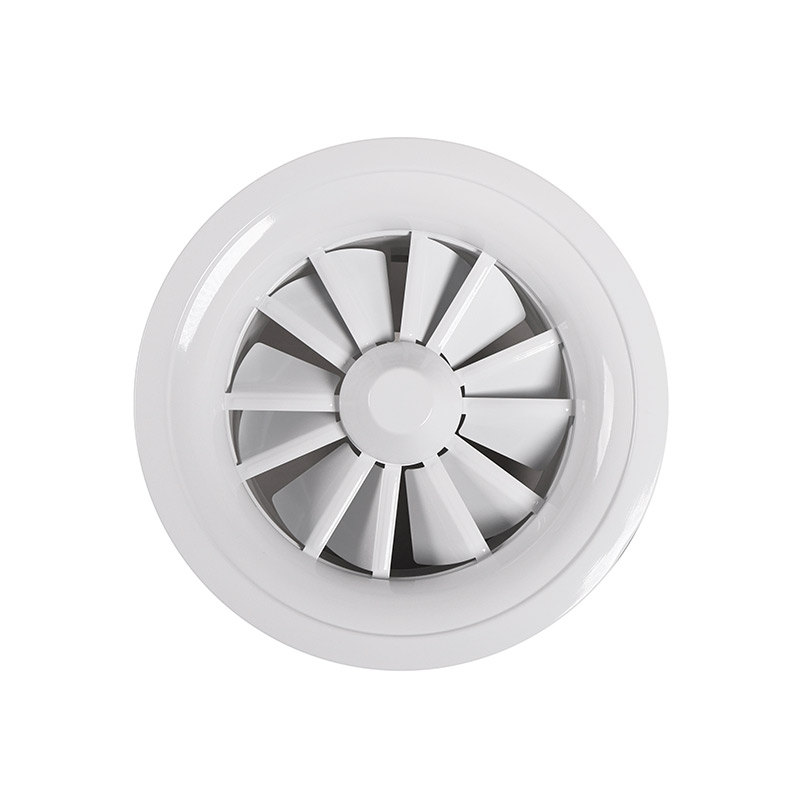

The round swirl diffusers are an attractive and aerodynamically efficient alternative to conventional circular ceiling air terminals. The diffusers are designed to produce a horizontal, radial air pattern with a turbulent, high induction jet characteristic and are ideally suited for applications with high heating or cooling differentials.
