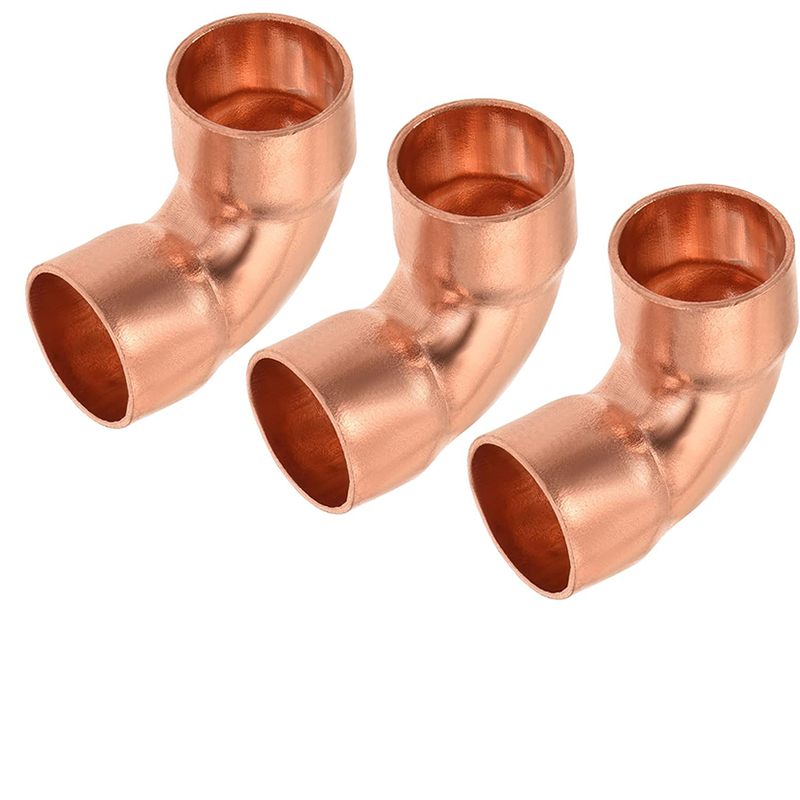

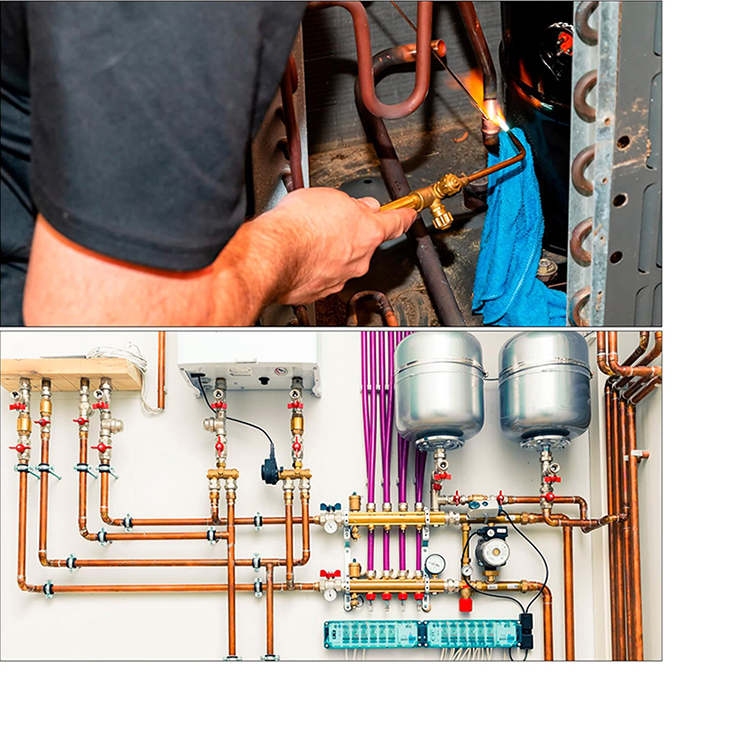

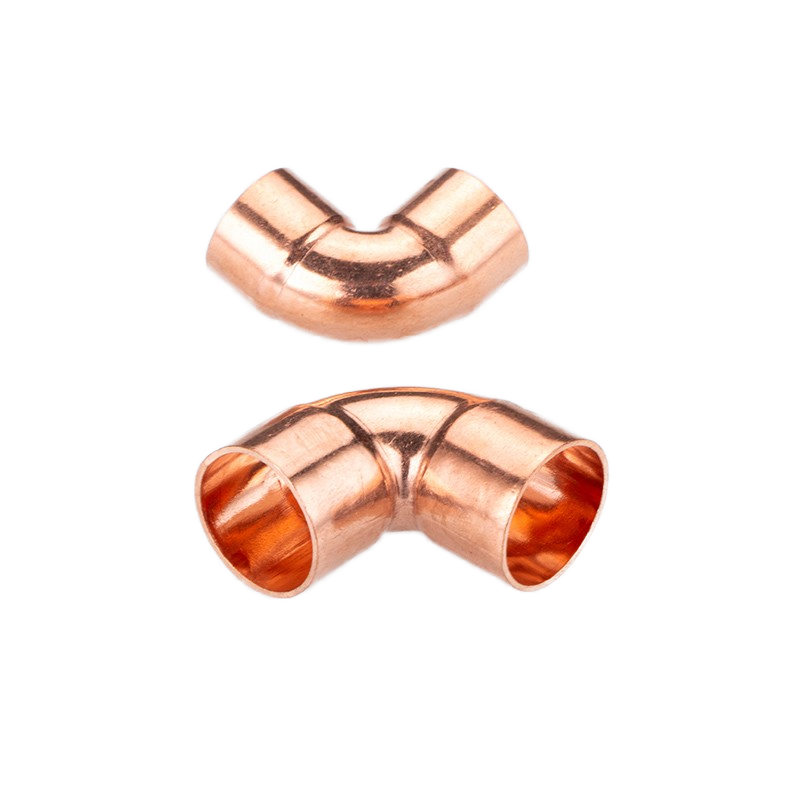

These 90-degree elbow fittings are primarily used in cooling systems for solar devices, HVAC air-conditioning units, hydraulic cooling systems, above-ground water supply pipelines, and similar applications.
Crafted from high-quality copper, they feature a thick-walled construction for excellent corrosion resistance and the ability to withstand high temperatures and pressure.
The fittings offer rapid heat dissipation, a smooth and glossy surface finish, and uniform material density, making them resistant to cracking and ensuring a long service life.
They are designed for easy assembly and disassembly.
Specification
|
Item Code |
ASME/ANSI B 16.22(INCH) |
EN 1254-1 |
|
(MM) |
||
|
HC-90° Elbow Long Radius C×C |
1/4" |
8mm |
|
HC-90° Elbow Long Radius C×C |
5/16" |
10mm |
|
HC-90° Elbow Long Radius C×C |
3/8" |
10mm |
|
HC-90° Elbow Long Radius C×C |
1/2" |
12mm |
|
HC-90° Elbow Long Radius C×C |
5/8" |
14mm |
|
HC-90° Elbow Long Radius C×C |
3/4" |
16mm |
|
HC-90° Elbow Long Radius C×C |
7/8" |
18mm |
|
HC-90° Elbow Long Radius C×C |
1" |
22mm |
|
HC-90° Elbow Long Radius C×C |
1-1/8" |
25mm |
|
HC-90° Elbow Long Radius C×C |
1-1/4" |
28mm |
|
HC-90° Elbow Long Radius C×C |
1-3/8" |
35mm |
|
HC-90° Elbow Long Radius C×C |
1-1/2" |
42mm |
|
HC-90° Elbow Long Radius C×C |
1-5/8" |
54mm |
|
HC-90° Elbow Long Radius C×C |
1-3/4" |
64mm |
|
HC-90° Elbow Long Radius C×C |
2-1/8" |
76mm |
|
HC-90° Elbow Long Radius C×C |
2-5/8" |
80mm |
