Specification
|

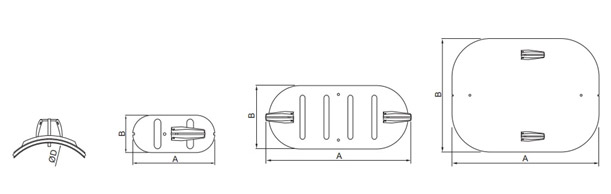

Item code |
AxB(mm) |
ØD(mm) |
Handle No. |
|
HC 100 |
180x85 |
100 |
1 |
|
HC 125 |
180x85 |
125 |
1 |
|
HC 160 |
180x85 |
160 |
1 |
|
HC 200 |
300x100 |
200 |
2 |
|
HC 250 |
300x100 |
250 |
2 |
|
HC 315 |
300x100 |
315 |
2 |
|
HC 400 |
400x200 |
400 |
2 |
|
HC 500 |
400x200 |
500 |
2 |
|
HC 630 |
500x400 |
630 |
2 |
|
HC 800 |
500x400 |
800 |
2 |
|
HC 1000 |
500x400 |
1000 |
2 |
|
HC 1250 |
500x400 |
1250 |
4 |

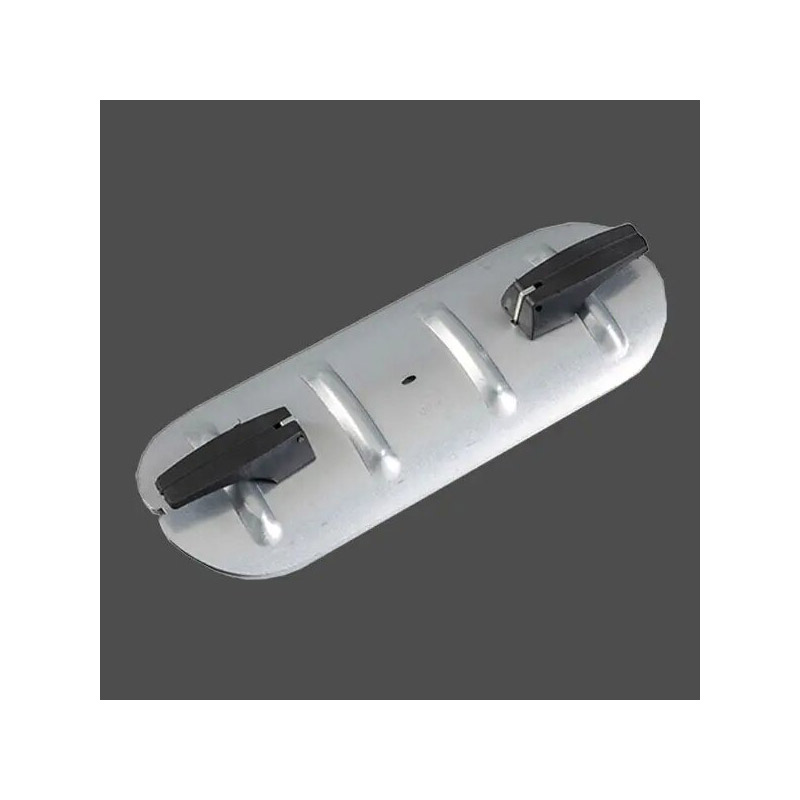

Application: Specifically designed for round duct systems, facilitating cleaning, inspection, and maintenance of internal equipment.
Material: Typically constructed from galvanized steel, but aluminumor stainless steel options are available for special orders.
Features: The curved design ensures a perfect fit with round ducts, providing a secure and reliable access point.
Sealing: Equipped with a honeycomb sponge gasket or PUR gasket to ensure airtight sealing.
Installation: Some models come with a self-adhesive template, aiding in measurement and installation on spiral ducts.
