Easy Installation: Can be readily mounted on square, round, or other actuator shafts.
Long Service Life & Low Noise: Designed for durability and quiet operation.
Intelligent Control: Supports multi‑function smart control, with all series offering manual override.
High Protection Rating: Rated IP54 for safe, stable, and efficient performance.
Full Protection & Adjustment: Includes overload protection and manual travel limit across all models.
Specification
|
Electrical data |
Nominal voltage |
AC24V 50/60Hz DC24V |
AC100...240V 50/60HZ |
|
|
|
AC/DC19.2....28.8V |
AC85...265V |
||
|
Nominal Voltage range |
||||
|
|
4.5W@Nominal toque /0.5W@Holding |
|||
|
Power consumption |
||||
|
Wire sizing |
0.5mm² |
|||
|
Terminal specification |
Max2mm² |
|||
|
Functional date |
Torque |
2Nm/4Nm/6Nm/8Nm/16Nm/24Nm/32Nm/40Nm |
||
|
Damper size |
Normal wind resistance case 1Nm match 0.1 square |
|||
|
(including airtight valve matching scheme) |
||||
|
Direction of rotation |
Selectable by switch |
|||
|
Manual override |
The whole series with manual operation |
|||
|
Angel of rotation |
Max.95°，full stroke adjustable by mechanical limit |
|||
|
Running time |
Fine-tuning within the parameters of the selection table |
|||
|
Sound power level |
46db |
|||
|
position indication |
Mechanical |
|||
|
Working conditionst |
Protection class |
Ⅲ（safety low voltage）Ⅱ（double insulation） |
||
|
Protection class |
Ⅲ（safety low voltage）Ⅱ（double insulation） |
|||
|
Protection degree |
IP54 |
|||
|
Ambient temperature |
-20...+50℃/ICE 721-3-3 |
|||
|
Inventory temperature |
-30...+80℃/ICE 721-3v-2 |
|||
|
Humidity test |
95%RH,non condensing/EN 60730-1 |
|||
|
Dimensions/Weight |
Dimensions |

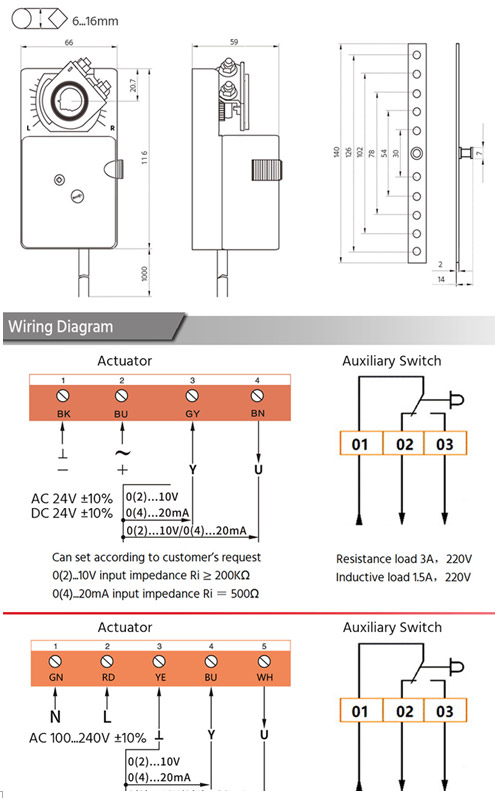

See “Dimensions” |
||
|
Shaft length |
>50mm |
|||
|
Shaft diameter |
○10...20mm 10×10...16×16mm |
|||
|
Weight |
<1.3KG |
|||

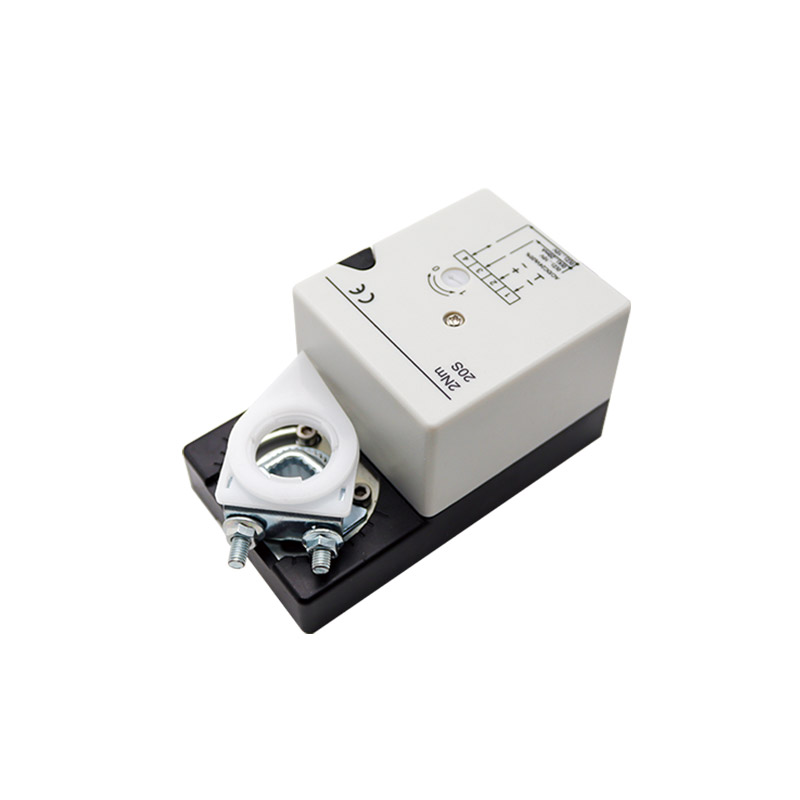

This damper actuator is powered by an imported DC motor or brushless motor, offering torque options of 2 Nm, 4 Nm, 6 Nm, 8 Nm, 16 Nm, 24 Nm, 32 Nm, and 40 Nm. It can be directly applied for angular stroke control in air or water systems, supporting control signals of 0–10 V (or 2–10 V) and 0–20 mA (or 4–20 mA). The actuator also provides configurable current or voltage signal feedback that can be interchanged as needed.
