Easy Installation: Can be readily mounted on square, round, or other actuator shafts.
Long Service Life & Low Noise: Designed for durability and quiet operation.
Intelligent Control: Supports multi‑function smart control, with all series offering manual override.
High Protection Rating: Rated IP54 for safe, stable, and efficient performance.
Full Protection & Adjustment: Includes overload protection and manual travel limit across all models.
Specification
|
Torque |
Running Time |
Plwer Supply |
Auxiliary Switch |
Model Number |
|
16Nm |
30S~55S (95°) |
AC/DC 24V |
None |
HC-16NR24V-O |
|
2-SPDT |
HC-16NR24V-OS |
|||
|
16Nm |
30S~55S (95°) |
AC 100…240V |
None |
HC-16NR220V-O |
|
2-SPDT |
HC-16NR220V-O |

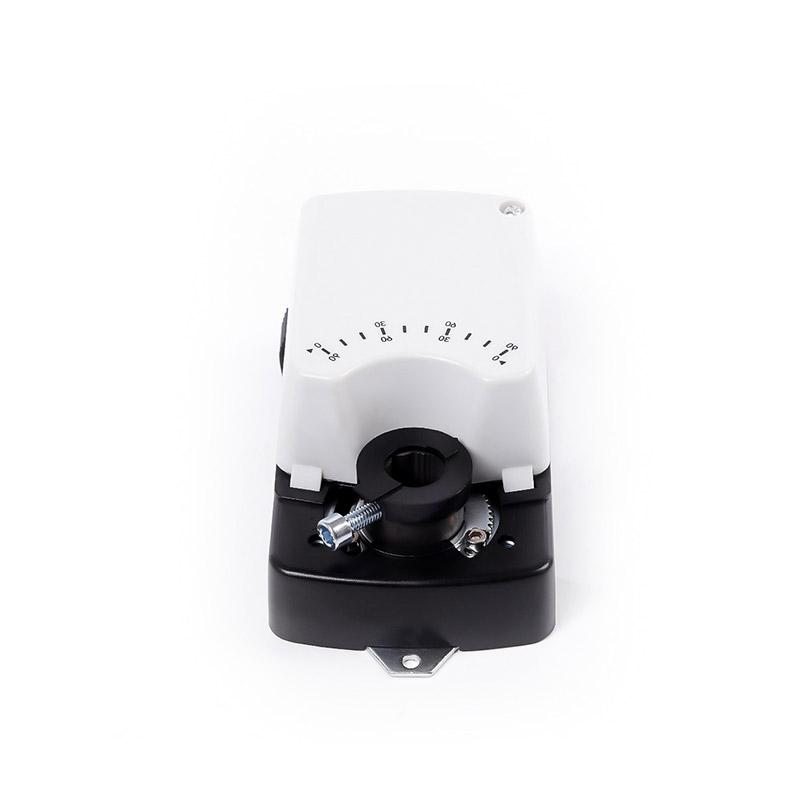

This damper actuator is powered by an imported DC motor or brushless motor, offering torque options of 2 Nm, 4 Nm, 6 Nm, 8 Nm, 16 Nm, 24 Nm, 32 Nm, and 40 Nm. It can be directly applied for angular stroke control in air or water systems, supporting control signals of 0–10 V (or 2–10 V) and 0–20 mA (or 4–20 mA). The actuator also provides configurable current or voltage signal feedback that can be interchanged as needed.
