Construction: Body and valve fabricated from galvanized steel (DX53D + Z275) or stainless steel 316.
Sealing: Features a double‑lip EPDM rubber gasket for reliable airtightness.
Airtightness Rating: Meets Class C according to EN 1751:2014.
Operation: Equipped with a plastic regulator nut and matching plastic key for easy adjustment.
Labeling: Includes a selection‑graph sticker indicating air volume vs. valve opening position and corresponding pressure level.
Installation: Designed with flexible joints to ensure an airtight fit when installed inside the duct.
Color Option: Plastic components available in orange or yellow.

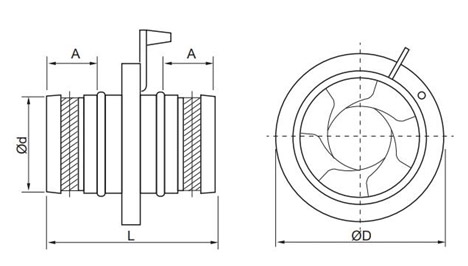

Specification
|
Item Code |
Ød(mm) |
ØD(mm) |
L(mm) |
A(mm) |
|
HC-IRIS |
79 |
125 |
115 |
33 |
|
HC-IRIS |
99 |
165 |
115 |
27 |
|
HC-IRIS |
124 |
188 |
115 |
27 |
|
HC-IRIS |
149 |
230 |
115 |
27 |
|
HC-IRIS |
159 |
230 |
115 |
27 |
|
HC-IRIS |
199 |
285 |
120 |
27 |
|
HC-IRIS |
249 |
335 |
135 |
33 |
|
HC-IRIS |
299 |
405 |
140 |
33 |
|
HC-IRIS |
314 |
405 |
140 |
33 |
|
HC-IRIS |
398 |
525 |
150 |
46 |
|
HC-IRIS |
498 |
655 |
150 |
46 |
|
HC-IRIS |
628 |
815 |
155 |
46 |
|
HC-IRIS |
798 |
1015 |
285 |
110 |

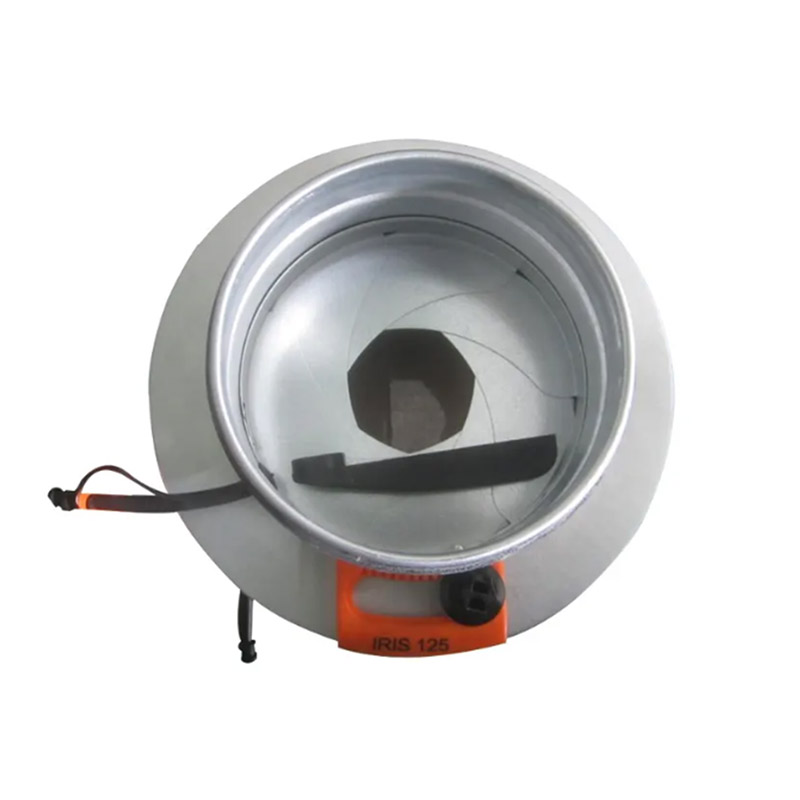

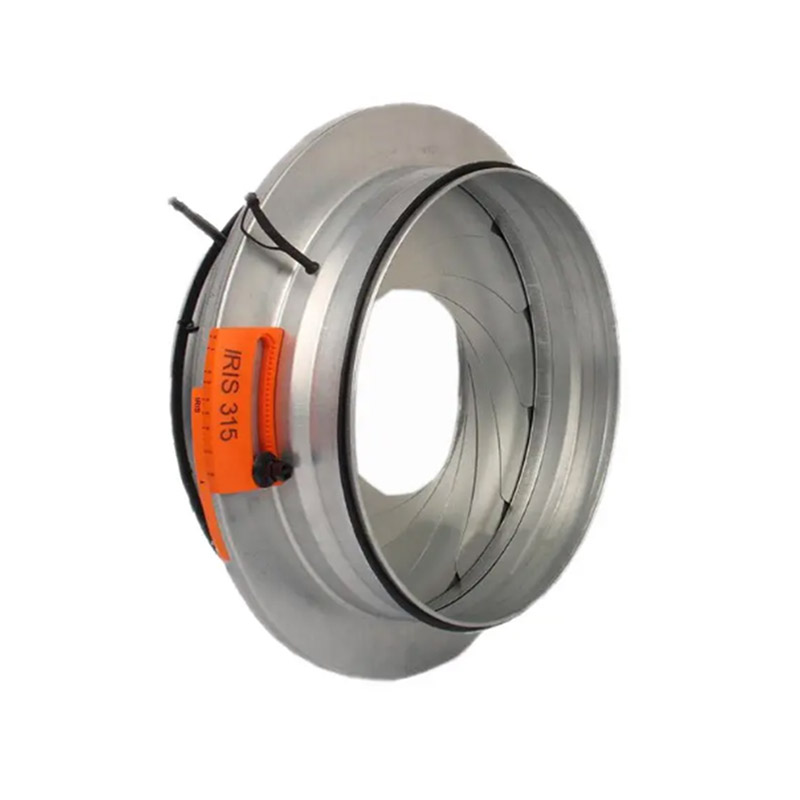

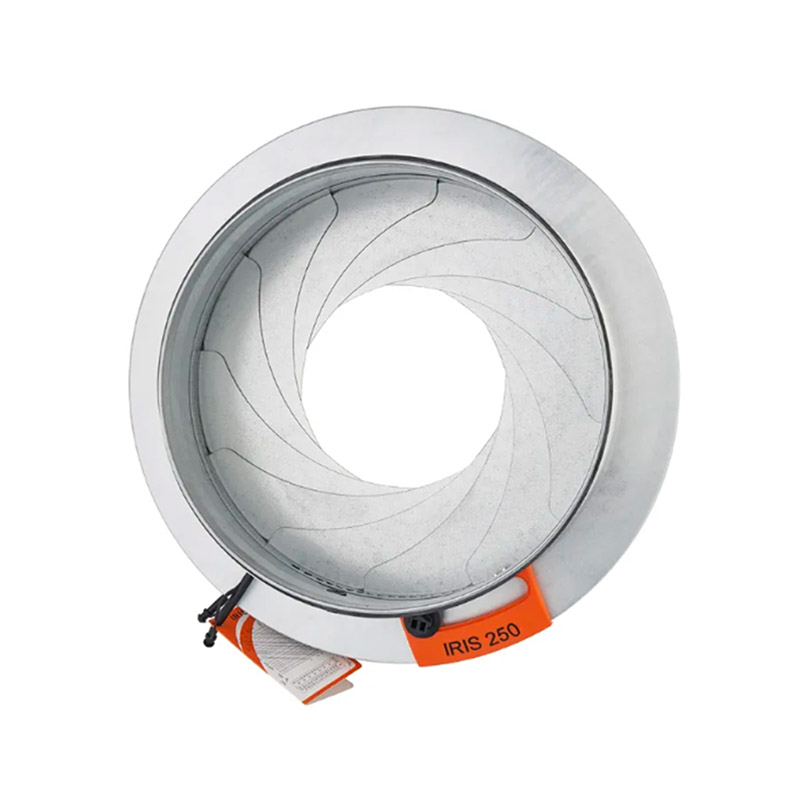

Iris Damper – a high-performance air volume regulator engineered for precision control in HVAC systems. Built from durable galvanized and stainless steel, it ensures long-lasting reliability in demanding environments.
Its round design with adjustable slits allows smooth, accurate airflow management, making it an ideal choice for large-scale ventilation applications such as shopping malls, commercial complexes, and industrial spaces.
