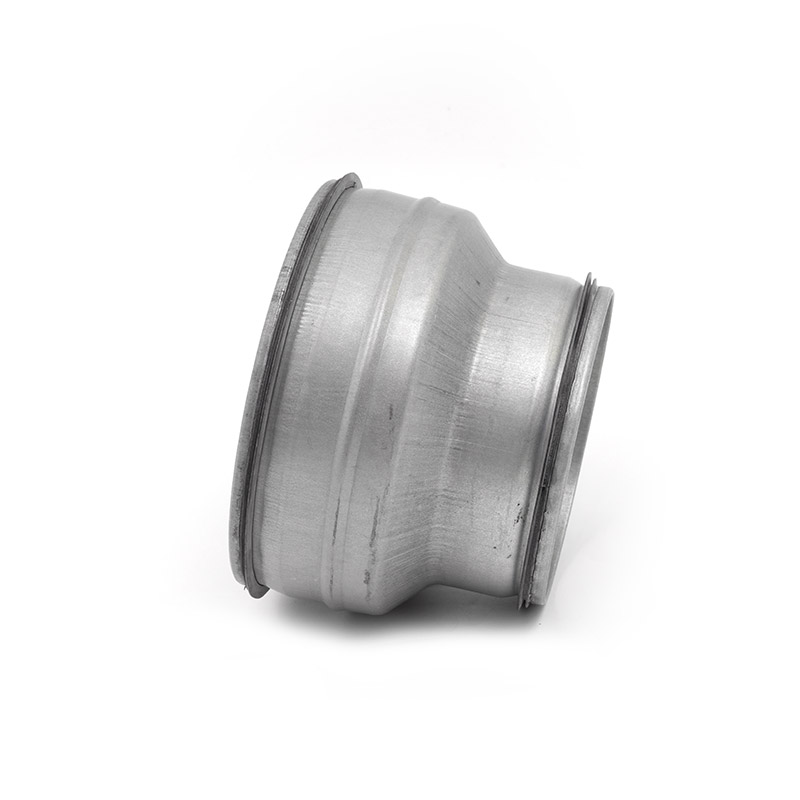

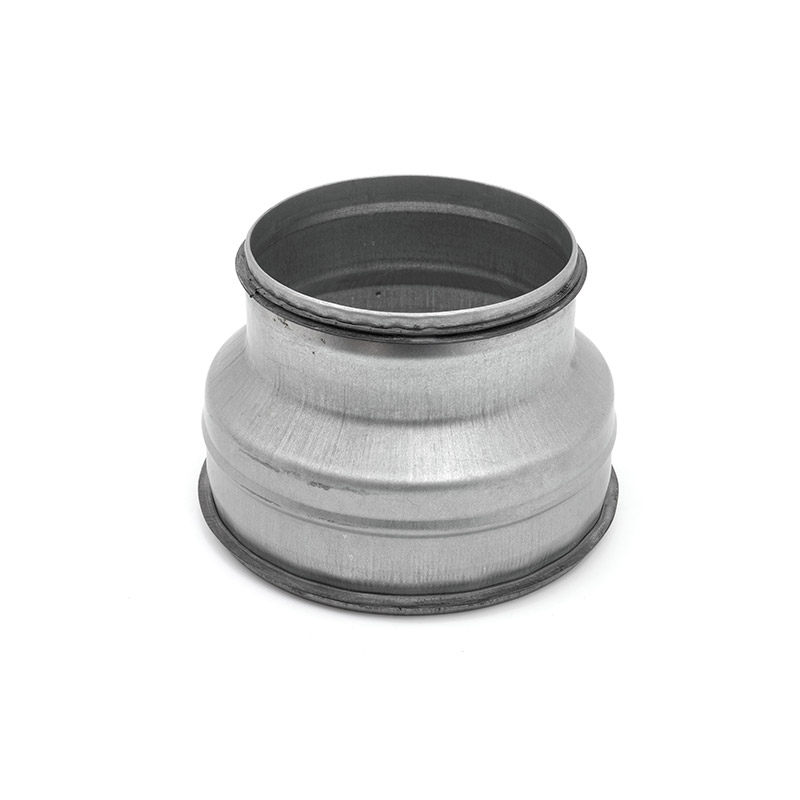

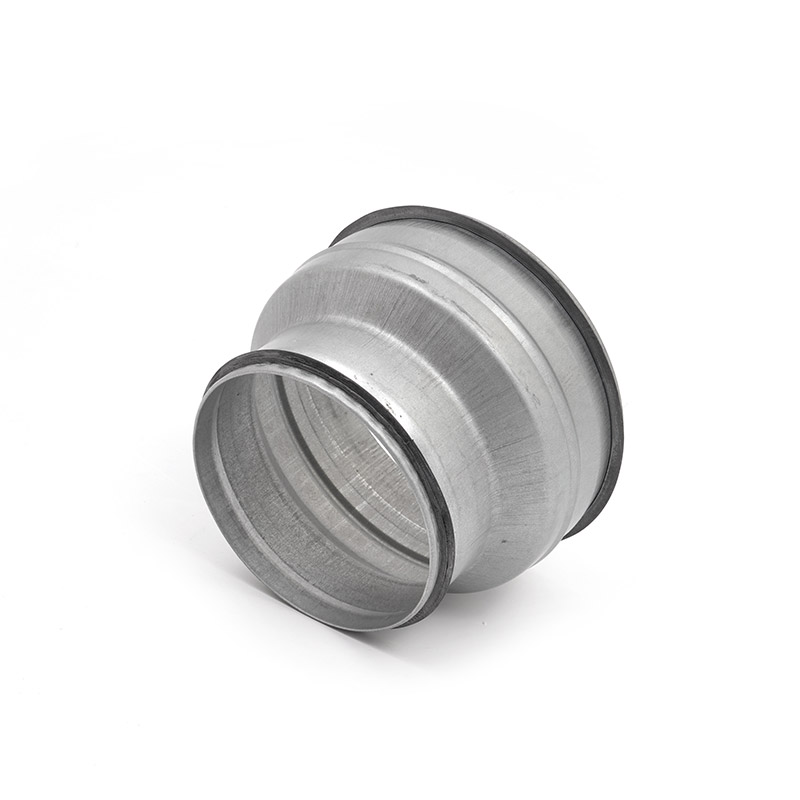

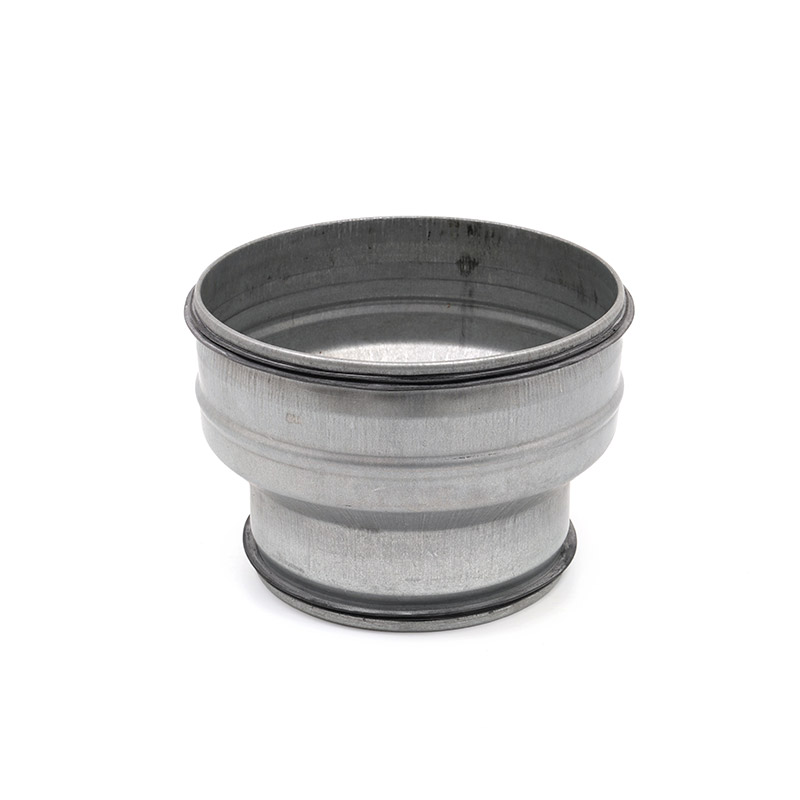

Function: Used to connect round ventilation ducts of different diameters, ensuring smooth airflow transition and maintaining optimal air circulation.
Material: Typically made of durable metals such as galvanized steel.
Application: Suitable for various ventilation and exhaust systems, including bathroom exhaust fans, HVAC systems, range hoods, dryers, and hydroponic setups.
Installation: Compatible with equipment such as exhaust fans and dust collectors, and can be secured using mastic sealant and aluminum foil tape.
Equipped with a rubber sealing gasket to ensure a high level of air-tightness.

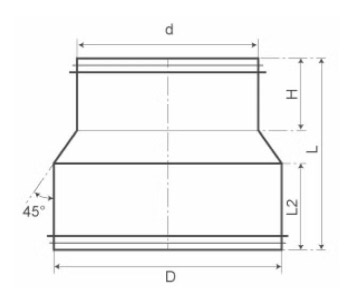

Specification
|
Item Code |
SIZE |
D |
d |
L |
H |
L2 |
|
HC-RCX |
100 80 |
98.8 |
78.8 |
110 |
40 |
55 |
|
HC-RCX |
125 80 |
123.8 |
78.8 |
122 |
40 |
55 |
|
HC-RCX |
125 100 |
123.8 |
98.8 |
112 |
45 |
55 |
|
HC-RCX |
150 100 |
148.7 |
98.8 |
125 |
45 |
55 |
|
HC-RCX |
150 125 |
148.7 |
123.8 |
122 |
45 |
55 |
|
HC-RCX |
160 100 |
158.7 |
98.8 |
130 |
45 |
55 |
|
HC-RCX |
160 125 |
158.7 |
123.8 |
117 |
45 |
55 |
|
HC-RCX |
200 100 |
198.6 |
98.8 |
150 |
45 |
55 |
|
HC-RCX |
200 125 |
198.6 |
123.8 |
137 |
45 |
55 |
|
HC-RCX |
200 150 |
198.6 |
148.7 |
125 |
45 |
55 |
|
HC-RCX |
200 160 |
198.6 |
158.7 |
120 |
45 |
55 |
|
HC-RCX |
250 160 |
248.5 |
158.7 |
144 |
45 |
55 |
|
HC-RCX |
250 200 |
248.5 |
198.6 |
125 |
45 |
55 |
|
HC-RCX |
315 160 |
313.4 |
158.7 |
177 |
45 |
55 |
|
HC-RCX |
315 200 |
313.4 |
198.6 |
157 |
45 |
55 |
