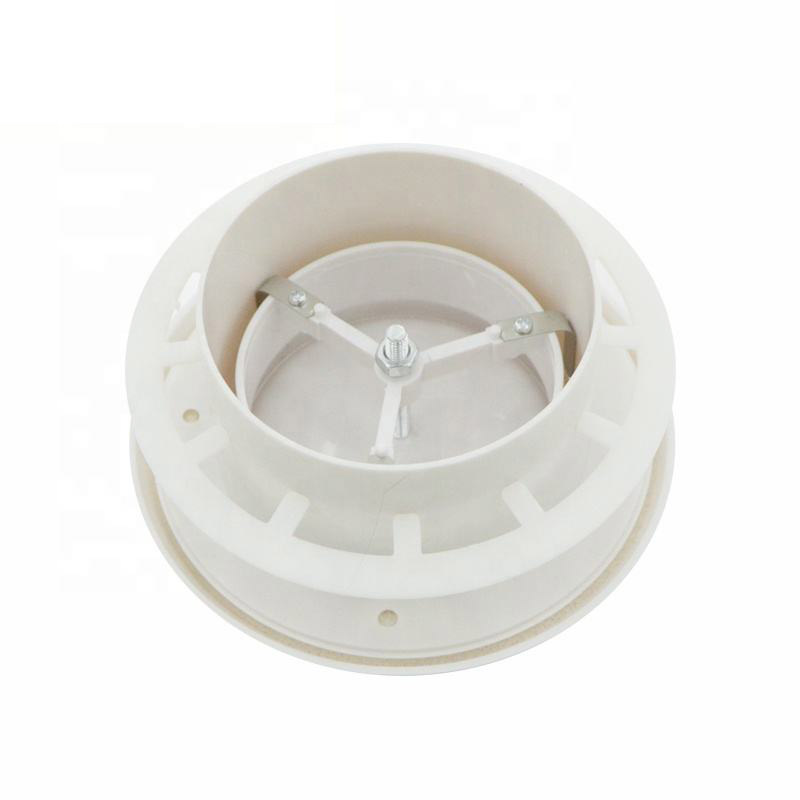

Adjustable Airflow: Variable control via a rotating central disc
Quiet & Efficient Operation: Specially designed body reduces noise and improves airflow
Easy Maintenance: Can be disassembled for cleaning
Secure Seal: Ensures no leakage between valve body and mounting frame
Space-Saving Installation: Includes a clamping ring for mounting in confined areas

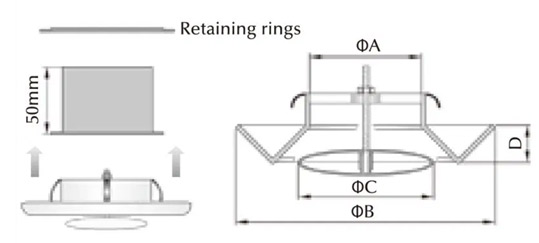

Specification
|
Size |
A(MM) |
B(MM) |
C(MM) |
D(MM) |
|
φ100 |
80 |
148 |
87 |
20 |
|
φ125 |
100 |
168 |
106 |
20 |
|
φ150 |
118 |
186 |
130 |
20 |
|
φ200 |
171 |
240 |
178 |
20 |

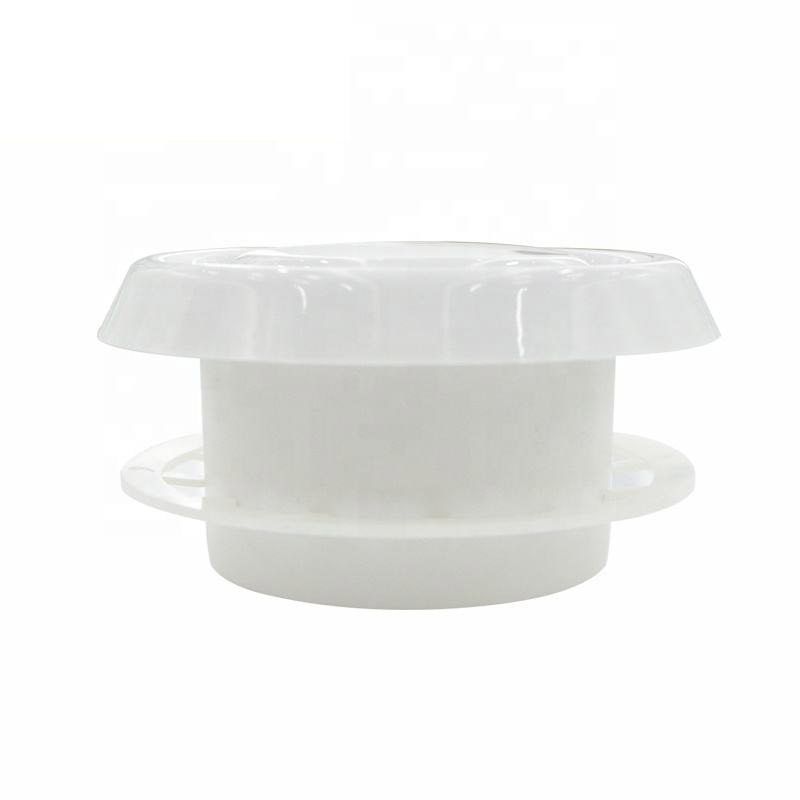

The HC-VP plastic air valve is designed for precise air regulation in ventilation systems. It features a rotating central disc for adjustable airflow control and is constructed from durable, high-temperature-resistant polypropylene (up to 100°C).
Specifications
Material: Polypropylene
Temperature Resistance: Up to 100°C
Mounting Option: Includes clamping ring for limited-space installation
Typical Applications
Residential and commercial ventilation systems
HVAC air regulation
Environments requiring quiet and efficient airflow control
