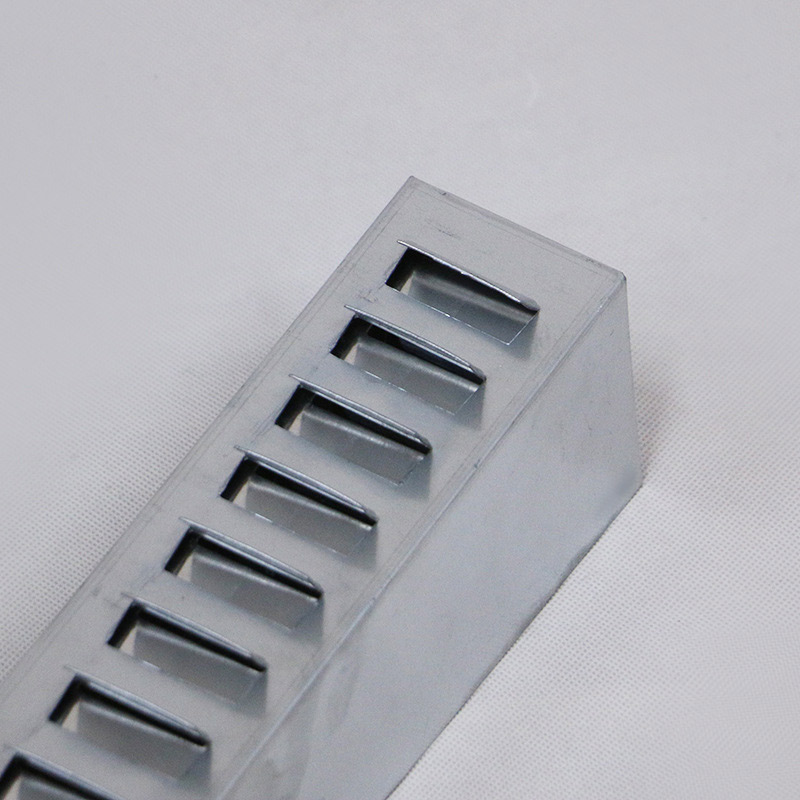

Direct-Mount Design: Installs seamlessly onto circular ducts, eliminating the need for extra frames or mounting hardware.
Wide Compatibility: Fits round duct sizes from 150mm to 1400mm in diameter.
Durable Construction: Made from galvanized steel sheet, with optional powder coating available in RAL colors for enhanced corrosion resistance and aesthetic flexibility.
Adjustable Airflow: Each vane can be manually and individually adjusted to optimize air distribution and coverage.
Industrial Applications: Ideal for warehouses, factories, workshops, gymnasiums, and other large, open spaces with visible duct systems.

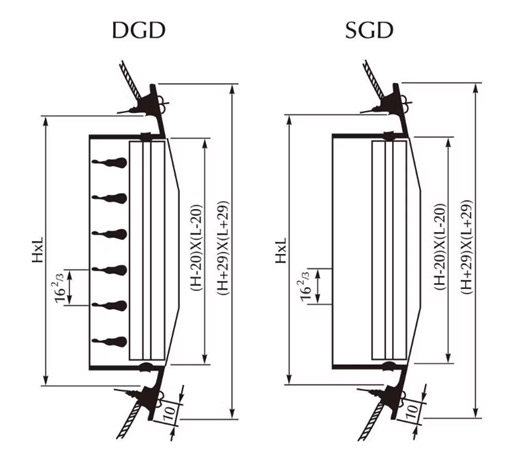

Specification
|
HC-SGD |
Dimensions |
φ Duct (mm) |
|
|
L×H(mm) |
Min. |
Max. |
|
|
425×75 |
150 |
400 |
|
|
525×75 |
150 |
400 |
|
|
625×75 |
150 |
400 |
|
|
425×125 |
315 |
900 |
|
|
525×125 |
315 |
900 |
|
|
625×125 |
315 |
900 |
|
|
825×125 |
315 |
900 |
|
|
1025×125 |
315 |
900 |
|
|
425×175 |
450 |
1200 |
|
|
525×175 |
450 |
1200 |
|
|
625×175 |
450 |
1200 |
|
|
825×175 |
450 |
1200 |
|
|
1025×175 |
450 |
1200 |
|
|
425×225 |
600 |
1400 |
|
|
525×225 |
600 |
1400 |
|
|
625×225 |
600 |
1400 |
|
|
825×225 |
600 |
1400 |
|
|
1025×225 |
600 |
1400 |
|
Designed for efficiency and industrial-grade performance, this diffuser installs directly onto circular ducts without the need for additional frames or fastening devices. Ideal for large open spaces with exposed ductwork, it provides precise and customizable airflow control for demanding environments.
Included Accessories & Mounting
Inclined sliding damper for additional airflow regulation
Visible screw mounting system for secure and straightforward installation
